Flexible corrugated conduit type PA6V2 TRX

Flexible corrugated conduit overbraided with galvanized stainless steel wire IP 66/67/68/69. The flexible PA6V2-TRX conduit is manufactured in polyamide 6 BS (PA6 BS[V2]) in compliance with the norms EN IEC 61386-2-3 and overbraided with stainless steel wire. Usable in presence of drosses, sparkles, and twinklings on foundry, die-casting, and welding machines, thanks to the external steel braiding which determines an excellent resistance to consumption and rodents attacks. Also usable where it is necessary is a good resistance to flames, compression, traction, torsion, abrasion, and contact with chemical agents. This conduit is halogen free and reduces at minimum toxicity. It is fl ame-retardant and displays good resistance to UV rays, oils, fuels, and solvents. Usage temperature range: from –40°C to +120°C. Self-extinguishing according to UL94 and FMVSS 302, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

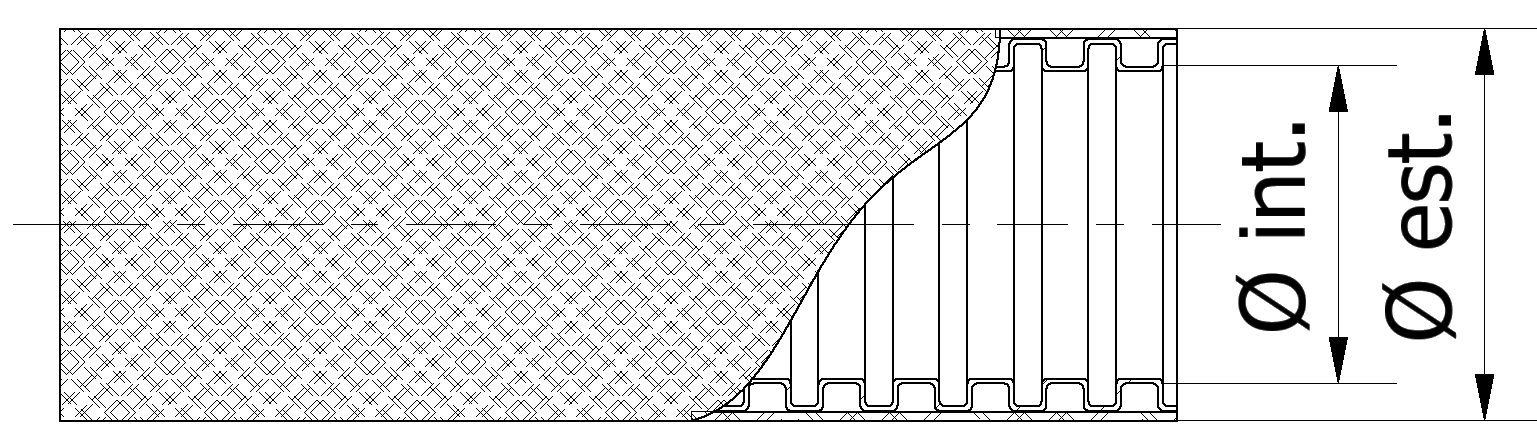

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: The Conduit in poliammide BS(PA6 BS) and overbrided in Stainless Steel AISI 304
Color: Steel

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

6.3

θ est(mm)

10

Color

Steel

NW(mm)

7

Product code

PA6V2TRX207

θ int(mm)

9.6

θ est(mm)

12.8

Color

Steel

NW(mm)

10

Product code

PA6V2TRX210

θ int(mm)

12

θ est(mm)

15.8

Color

Steel

NW(mm)

12

Product code

PA6V2TRX212

θ int(mm)

16.7

θ est(mm)

21.2

Color

Steel

NW(mm)

17

Product code

PA6V2TRX217

θ int(mm)

22.6

θ est(mm)

28.5

Color

Steel

NW(mm)

23

Product code

PA6V2TRX223

θ int(mm)

29

θ est(mm)

34.5

Color

Steel

NW(mm)

29

Product code

PA6V2TRX229

θ int(mm)

36.5

θ est(mm)

42.5

Color

Steel

NW(mm)

36

Product code

PA6V2TRX236

θ int(mm)

47.5

θ est(mm)

54.5

Color

Steel

NW(mm)

48

Product code

PA6V2TRX248

Characteristics

Operating temperature: – 40 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 120°C (3000h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: The Conduit in poliammide BS(PA6 BS) and overbrided in Stainless Steel AISI 304
Color: Steel
Reference standard: EN IEC 61386-23
Classification codes EN IEC 61386: 2 2 4 4
Compressive strength: 320 N
Impact resistance at -25°C: 2 J
Impact resistance at +23°C: 1 J
Fire classification UL94: V2
Self-extinguishing FMVSS 302: Self-extinguishing
Spread of fire EN IEC 61386: non flame propagating

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
