Fitting for pipe-conduit NY TR
Fittings for connection between rigid pipes and flexible nylon conduits overbraided. Fittings for connection between TZR rigid pipes and flexible nylon conduits overbraided with galvanized steel wire. They are manufactured in compliance with EN IEC 61386-2-3 in nickel-plated brass and ensure an IP67 protection degree and a temperature range between -40°C and +105°C. electrical continuity <0,05 ohm/mt. All our NICKEL PLATED BRASS or STAINLESS STEEL (AISI316 L / AISI 304) are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a brass fittings are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a corrosion tests. Certified and periodically inspected by IMQ ( Italian Mark of Quality ).

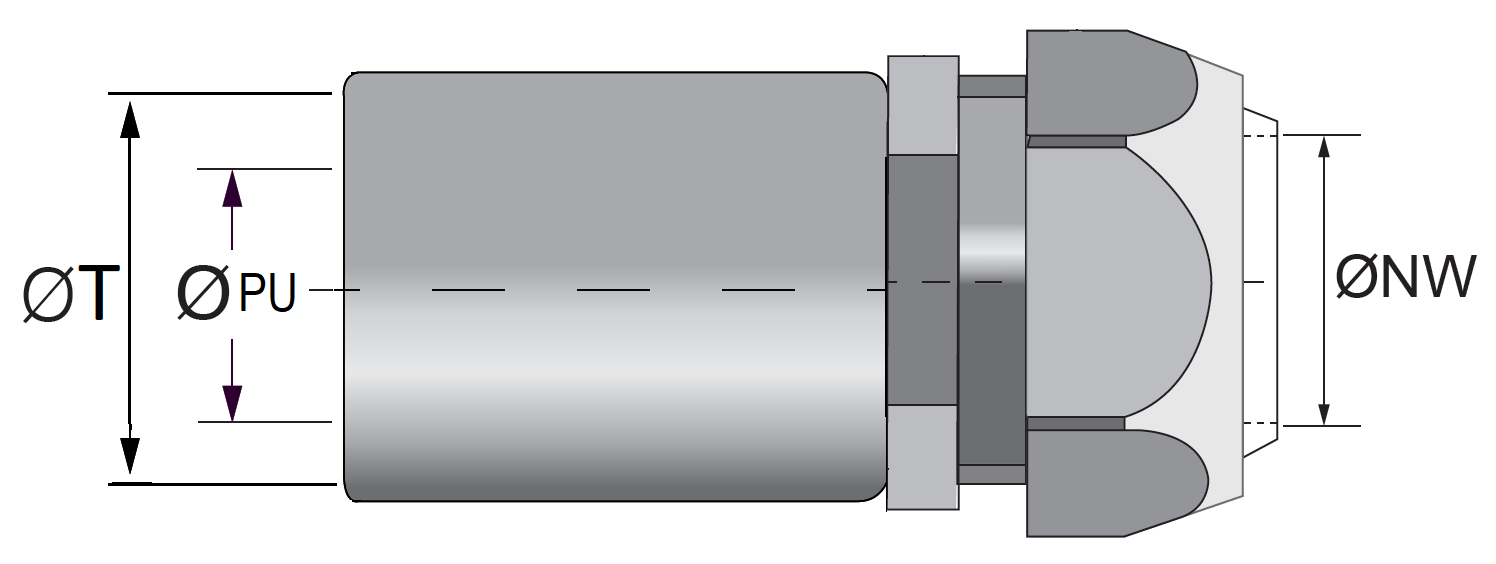

θ T- Pipe diameter
θ PU – Maximum cable passage
NW – Nominal diameter of the conduit
Material: Nickel plated brass
Color: Nickel
Material
Nickel plated brass
NW(mm)
10
θ PU(mm)
9.5
θ T(mm)
16
Product code
P99916
CAD
Material
Nickel plated brass
NW(mm)
12
θ PU(mm)
12
θ T(mm)
20
Product code
P99920
CAD
Material
Nickel plated brass
NW(mm)
17
θ PU(mm)
16
θ T(mm)
25
Product code
P99925
CAD
Material
Nickel plated brass
NW(mm)
23
θ PU(mm)
22
θ T(mm)
32
Product code
P99932
CAD
Material
Nickel plated brass
NW(mm)
29
θ PU(mm)
28.3
θ T(mm)
40
Product code
P99940
CAD
Material
Nickel plated brass
NW(mm)
36
θ PU(mm)
35.8
θ T(mm)
50
Product code
P99950
CAD
Material
Nickel plated brass
NW(mm)
48
θ PU(mm)
46.7
θ T(mm)
63
Product code
P99963*
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386-1
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.
