Non-threadable rigid pipe

Non-threadable rigid pipe in stainless steel AISI 316L TXXR

Non-threadable Rigid tube made in STAINLESS STEEL AISI 316 L. Manifactured in compliance with EN 60423, certified and periodically inspected by IMQ ( Italian Mark of Quality ). Very suitable for installations where is required a high mechanical resistance and to corrosion. It’s possible to bend it cold, the electrical continuity is lower than 0,05 ohm/mt and the watertight is assured by assembling our “55000-56000-57000-58000” fittings, that are certified by IMQ D.A.T. N EQ 877-CA02.05590 together with the conduit. Excellent resistance to impacts, crash and corrosion, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

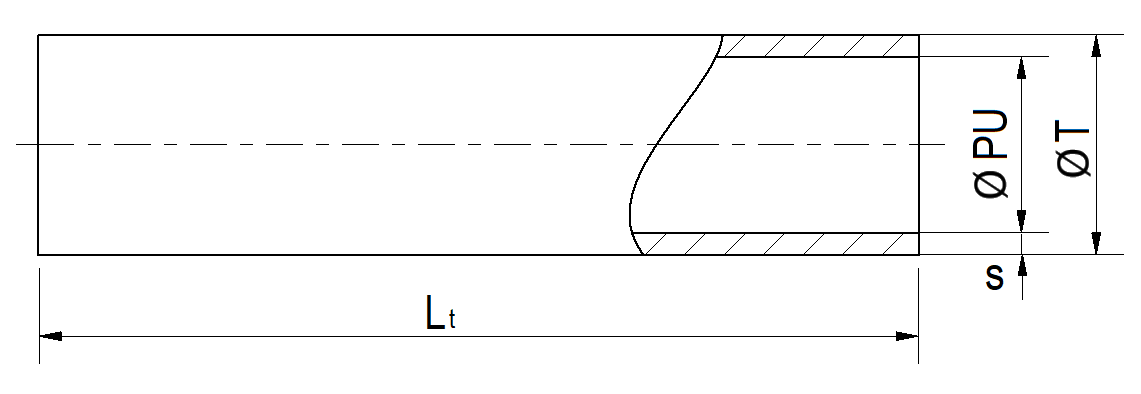

θ T- Pipe diameter
θ PU – Maximum cable passage
S – Pipe thickness
Lt – Pipe length
Material: Stainless Steel AISI 316L
Color: Steel

S(mm)

S(mm)

θ PU(mm)

θ PU(mm)

θ T(mm)

θ T(mm)

Lt(m)

Lt(m)

Product code

CAD

S(mm)

1

θ PU(mm)

14

θ T(mm)

16

Lt(m)

3

Product code

TXR316 16/3

CAD

CAD 3D

S(mm)

1

θ PU(mm)

18

θ T(mm)

20

Lt(m)

3

Product code

TXR316 20/3

CAD

CAD 3D

S(mm)

1.2

θ PU(mm)

22.6

θ T(mm)

25

Lt(m)

3

Product code

TXR316 25/3

CAD

CAD 3D

S(mm)

1.2

θ PU(mm)

29.6

θ T(mm)

32

Lt(m)

3

Product code

TXR316 32/3

CAD

CAD 3D

S(mm)

1.2

θ PU(mm)

37.6

θ T(mm)

40

Lt(m)

3

Product code

TXR316 40/3

CAD

CAD 3D

S(mm)

1.2

θ PU(mm)

47.6

θ T(mm)

50

Lt(m)

3

Product code

TXR316 50/3

CAD

CAD 3D

S(mm)

1.5

θ PU(mm)

60.5

θ T(mm)

63.5

Lt(m)

3

Product code

TXR316 63/3

CAD

CAD 3D

Characteristics

Operating temperature: – 25 °C / + 400 °C
Degree of protection IP: IP67
Material: Stainless Steel AISI 316L
Color: Steel
Produced according to the standard: EN 60423
Reference standard: EN IEC 61386-1,21
Classification codes EN IEC 61386: 5 5 4 7
Tensile strength: 1000 N
Compressive strength: 4000 N
Impact resistance: 20 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity <0,05 ohm/meter
Corrosion resistance: Excellent

Quality controls

Tests of tensile strength between pipe and fitting and compressive strength in accordance with the EN IEC 61386 standard. Analysis of casting and chemical composition by means of a certificate of conformity 2.2.
