Non-threadable rigid pipe
Non-threadable rigid pipe in stainless steel AISI 304 TXR
Non-threadable Rigid tube made in STAINLESS STEEL AISI 304. Manifactured in compliance with EN 60423, certified and periodically inspected by IMQ ( Italian Mark of Quality ). Very suitable for installations where is required a high mechanical resistance and to corrosion. It’s possible to bend it cold, the electrical continuity is lower than 0,05 ohm/mt and the watertight is assured by assembling our “55000-56000-57000-58000” fittings, that are certified by IMQ D.A.T. N EQ 877-CA02.05590 together with the conduit. Excellent resistance to impacts, crash and corrosion, self-extinguishing according to norms EN IEC 61386. EN IEC 61386 Certificate equivalent standard: Meets with the requirements of BS EN 61386 -2 -3 and BS 731 Part 1.

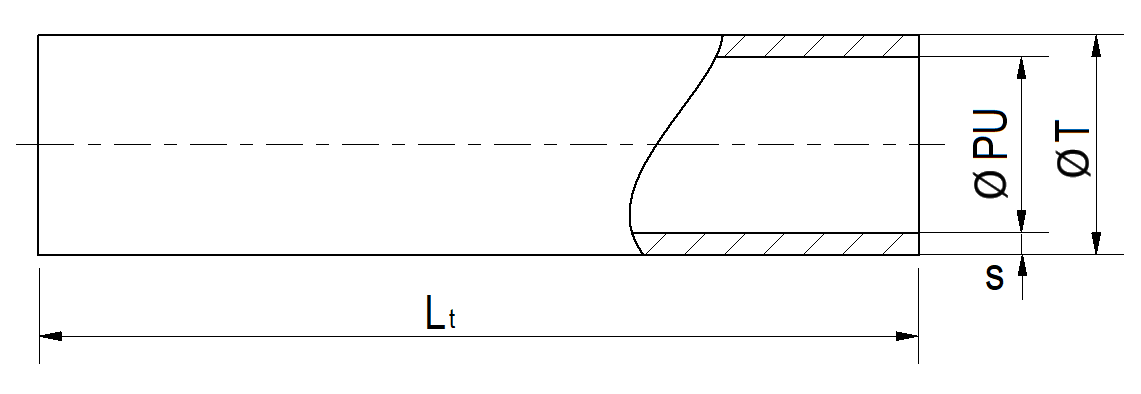

θ T- Pipe diameter
θ PU – Maximum cable passage
S – Pipe thickness
Lt – Pipe length
Material: Stainless Steel AISI 304
Color: Steel
Application sectors
Characteristics
Operating temperature: – 25 °C / + 400 °C
Degree of protection IP: IP67
Material: Stainless Steel AISI 304
Color: Steel
Produced according to the standard: EN 60423
Reference standard: EN IEC 61386-1,21
Classification codes EN IEC 61386: 5 5 4 7
Tensile strength: 1000 N
Compressive strength: 4000 N
Impact resistance: 20 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity <0,05 ohm/meter
Corrosion resistance: Excellent
Quality controls
Tests of tensile strength between pipe and fitting and compressive strength in accordance with the EN IEC 61386 standard. Analysis of casting and chemical composition by means of a certificate of conformity 2.2.
Download the certifications
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
