Nylon accessories and components for fittings and cable glands
Mounting rail with slot nuts PA MRN
Mounting rail with slot nuts for conduit mounting clip. The mounting rail PA MRN offers easy installation and arrangement of the conduit mounting clip PA HC. The corresponding slot nut PA MRN can be easily applied to the required fixing position and locked with a simple finger push. Using a screwdriver the slotted nut can be released and re-positioned again. The mounting rails can be connected with each other for extension and be cut with a standard conduit cutting plier to the required overall length.

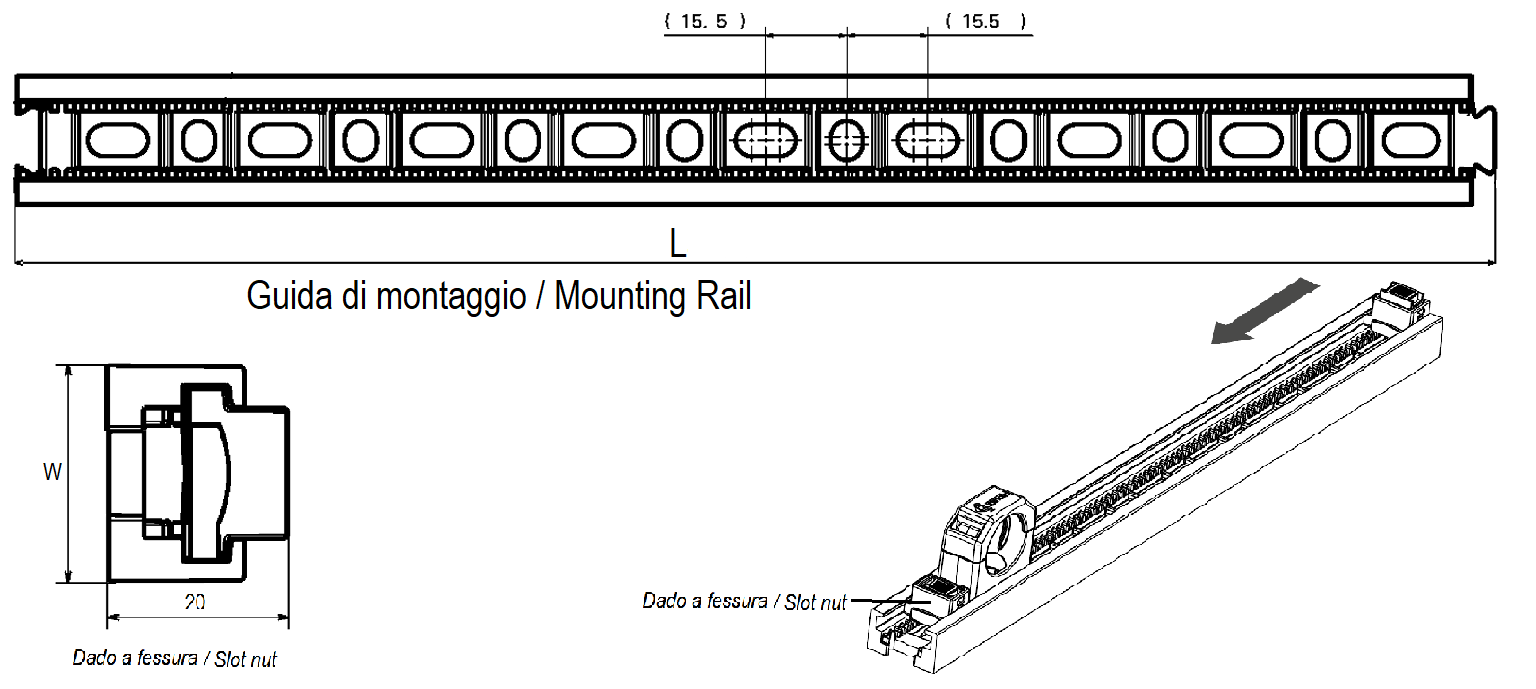

Tipo: Guida di montaggio / Dado a fessura
L – Length of the mounting rail
W – Width of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22
Self-extinguishing EN IEC 61386: Flame retardant
UV and weathering performance IS FIP: Very Good (15 to 20 anni)
Download the certifications
American Society for Testing and Materials
Halogen free
National Fire Protection Association
Registration, Evaluation, Authorization and Restriction of Chemicals
Resistenza alle radiazioni UV
Restriction of Hazardous Substances directive
Standards for rolling stock (halogen free) EN 45545-2
