Nylon accessories and components for fittings and cable glands
Conduit clips PA HC
The PA HC clip is a one-piece corrugated conduit mounting clip made of specially modified, free-halogen PA6.The single-hole fixation simplifies installation. The resealable cover connected to the clip provides high pull-out forces as well as reliable installation with corrugated conduits in fine and coarse profile.

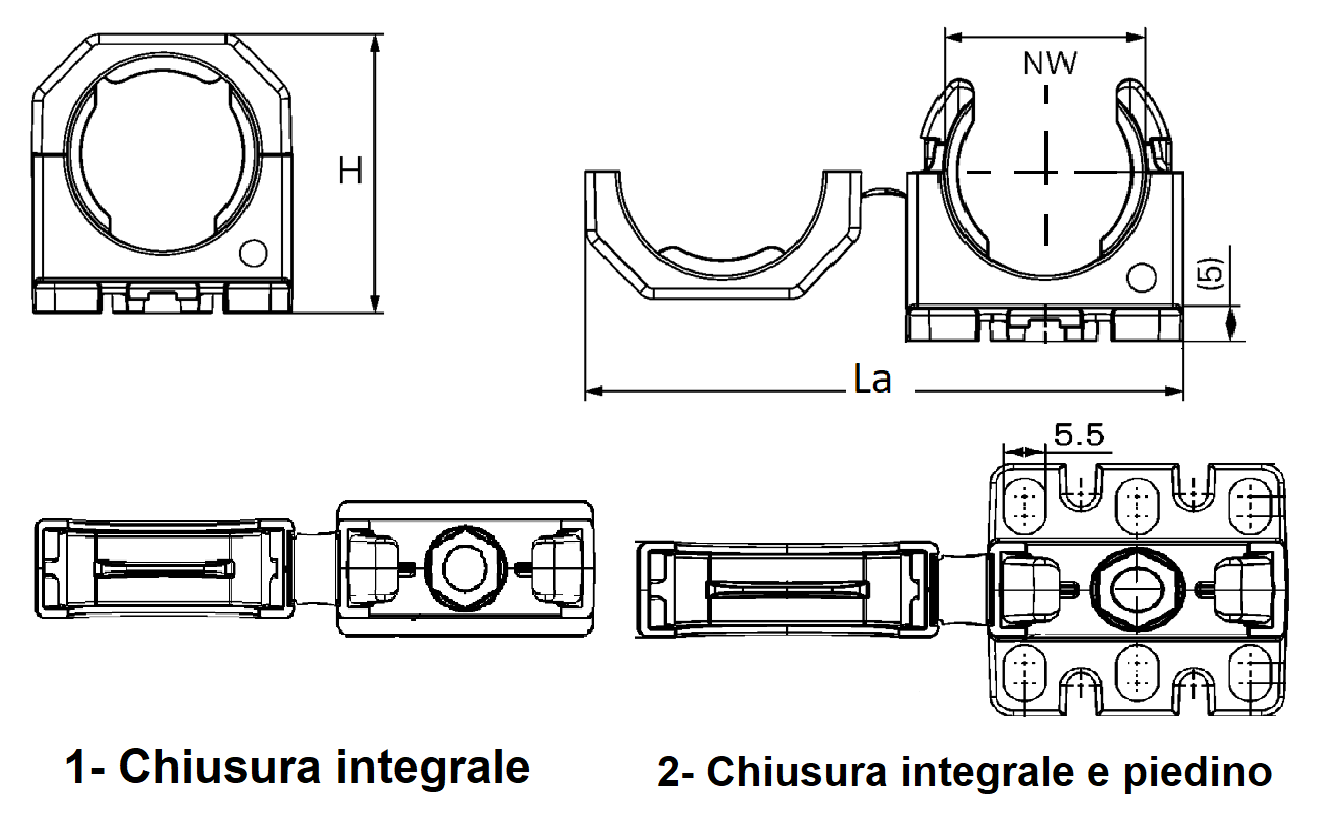

NW – Nominal diameter of the conduit
H – Height of the fitting
La – Length of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black
Color
Black
NW(mm)
10
Typology
Intergrated closing and basement
H(mm)
25
La(mm)
50.3
Product code
P64510
Color
Black
NW(mm)
12
Typology
Intergrated closing and basement
H(mm)
27
La(mm)
58.3
Product code
P64512
Color
Black
NW(mm)
17
Typology
Intergrated closing and basement
H(mm)
34
La(mm)
73.5
Product code
P64517
Color
Black
NW(mm)
23
Typology
Intergrated closing and basement
H(mm)
42
La(mm)
86.3
Product code
P64523
Color
Black
NW(mm)
29
Typology
Intergrated closing and basement
H(mm)
48
La(mm)
99.3
Product code
P64529
Color
Black
NW(mm)
36
Typology
Intergrated closing and basement
H(mm)
56
La(mm)
116.3
Product code
P64536
Color
Black
NW(mm)
48
Typology
Intergrated closing and basement
H(mm)
68
La(mm)
140.3
Product code
P64548
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black
Reference standard: EN IEC 61386
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Very Good (15 to 20 anni)
