Nylon accessories and components for fittings and cable glands

Termination bushing PA EN

Thermoplastic elastomer (TPE) Termination bushing for corrugated flexible conduit.

Download technical sheet
i
Request informations

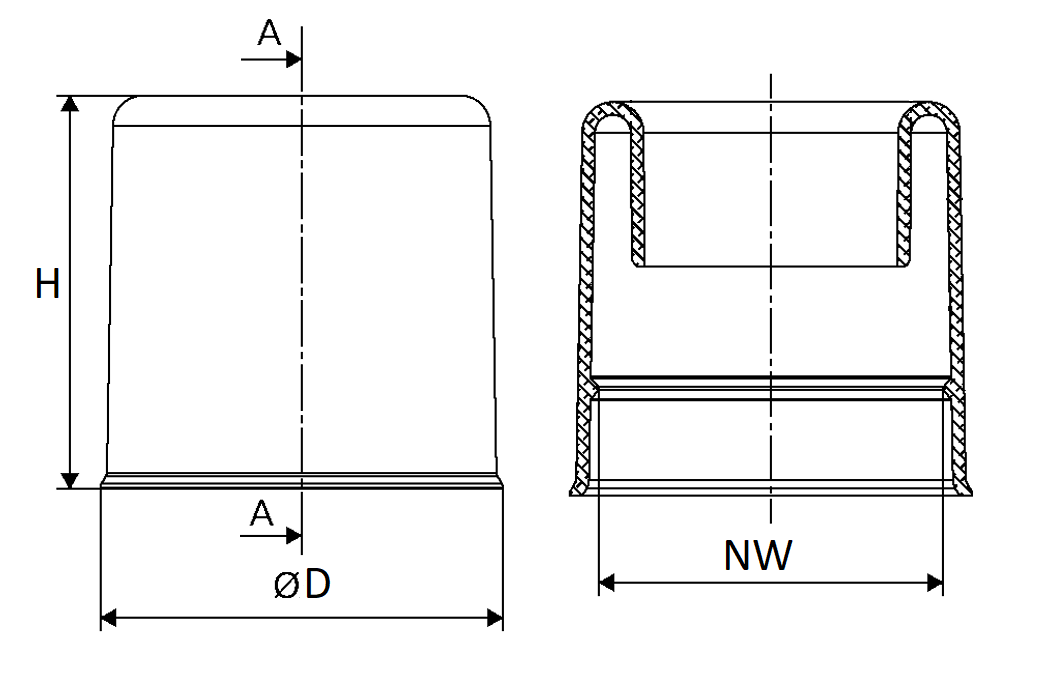

NW – Nominal diameter of the conduit
H – Height of the fitting
θ D – External diameter of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black

Color

Color
Apply Reset

NW(mm)

NW(mm)
Apply Reset

H(mm)

H(mm)
Apply Reset

D(mm)

D(mm)
Apply Reset

Product code

Color

Black

NW(mm)

7

H(mm)

20

D(mm)

12.1

Product code

P10007

Request info

Color

Black

NW(mm)

10

H(mm)

20

D(mm)

14.9

Product code

P10010

Request info

Color

Black

NW(mm)

12

H(mm)

20

D(mm)

17.8

Product code

P10012

Request info

Color

Black

NW(mm)

17

H(mm)

21

D(mm)

23.2

Product code

P10017

Request info

Color

Black

NW(mm)

23

H(mm)

21

D(mm)

31.1

Product code

P10023

Request info

Color

Black

NW(mm)

29

H(mm)

22

D(mm)

36.6

Product code

P10029

Request info

Color

Black

NW(mm)

36

H(mm)

24

D(mm)

45

Product code

P10036

Request info

Color

Black

NW(mm)

48

H(mm)

25.2

D(mm)

56.6

Product code

P10048

Request info

Application sectors

Chemical and Pharmaceutical

Infrastructure

Industrial automation

Industrial

Service sector

E-mobility & Automotive

Naval

Solar and Wind

Railway

Characteristics

Operating temperature: – 40 °C / + 120 °C
Material: TPE
Color: Black
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Self-extinguishing FMVSS 302: Self-extinguishing
Self-extinguishing EN IEC 61386: Flame retardant
UV and weathering performance IS FIP: Good (5-10 anni)

Download the certifications

CE compliance

Halogen free

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
