Fittings for Conduits
Fittings type HJT and overbraided conduit
Fitting male thread – corrugated conduit overbraided metal wire or glass fiber silicon elastomer. Fixed or swivel male threaded fitting manufactured in nickel-plated brass for over braided conduits, usable where there is a threaded hole, by screwing it directly, or a passing hole, by using a locknut on the opposite side. Manufactured in nickel-plated brass. The protection degree between the fitting and the conduit is IP67, in compliance with the norms EN IEC 61386-2-3. Perfect mechanical resistance to traction, torsion, and vibration. All our nickel-plated brass fittings are checked through a corrosion test with neuter salt fog according to the norms UNI ISO 9227 and to the corrosion test in a humid atmosphere according to the norms DIN 50017SK. These fittings do not show any sign of corrosion after the tests. “Certified and periodically inspected by the IMQ (Italian Mark of Quality)”

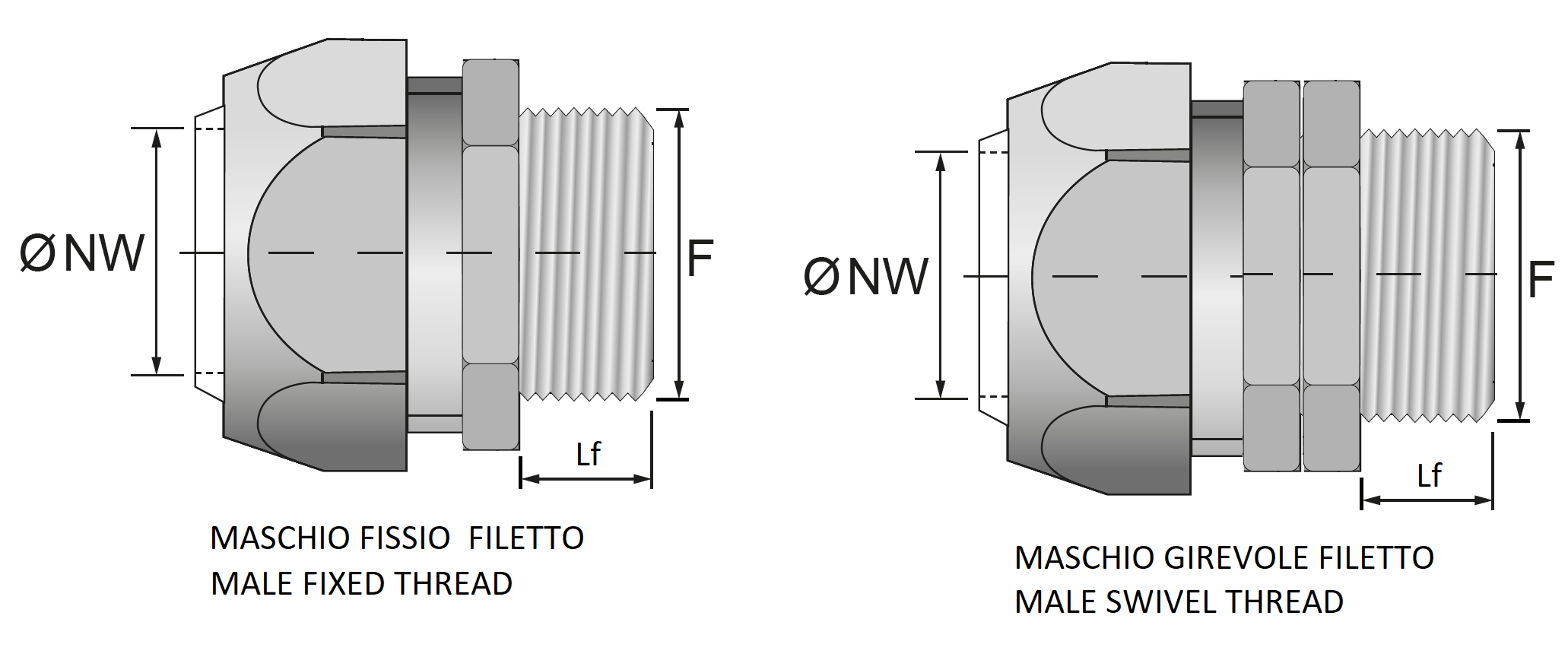

NW – Nominal diameter of the conduit
F – Thread Type and Thread Size
θ ID – Maximum cable passage
Material: Nickel plated brass
Color: Nickel
NW(mm)
7
Thread(F)
PG (DIN 40430)
Size(F)
PG11
θ I(mm)
6
Typology
Fitting with fixed male thread
Product code
PEU700711
CAD
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG13
θ I(mm)
9.2
Typology
Fitting with fixed male thread
Product code
PEU701013
CAD
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG16
θ I(mm)
11.8
Typology
Fitting with fixed male thread
Product code
PEU701216
CAD
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG21
θ I(mm)
16.1
Typology
Fitting with fixed male thread
Product code
PEU701721
CAD
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG29
θ I(mm)
22
Typology
Fitting with fixed male thread
Product code
PEU702329
CAD
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG36
θ I(mm)
28.3
Typology
Fitting with fixed male thread
Product code
PEU702936
CAD
NW(mm)
36
Thread(F)
PG (DIN 40430)
Size(F)
PG42
θ I(mm)
35.8
Typology
Fitting with fixed male thread
Product code
PEU703642
CAD
NW(mm)
48
Thread(F)
PG (DIN 40430)
Size(F)
PG48
θ I(mm)
46.7
Typology
Fitting with fixed male thread
Product code
PEU704848
CAD
NW(mm)
7
Thread(F)
Metrico (ISO 965)
Size(F)
M12x1,5
θ I(mm)
6
Typology
Fitting with fixed male thread
Product code
PEU710712
CAD
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ I(mm)
9.2
Typology
Fitting with fixed male thread
Product code
PEU711016
CAD
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ I(mm)
11.8
Typology
Fitting with fixed male thread
Product code
PEU711220
CAD
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ I(mm)
16.1
Typology
Fitting with fixed male thread
Product code
PEU711725
CAD
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
θ I(mm)
22
Typology
Fitting with fixed male thread
Product code
PEU712332
CAD
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ I(mm)
28.3
Typology
Fitting with fixed male thread
Product code
PEU712940
CAD
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
θ I(mm)
35.8
Typology
Fitting with fixed male thread
Product code
PEU713650
CAD
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
θ I(mm)
46.7
Typology
Fitting with fixed male thread
Product code
PEU714863
CAD
NW(mm)
7
Thread(F)
PG (DIN 40430)
Size(F)
PG11
θ I(mm)
6
Typology
Fitting with swivel male thread
Product code
PEU720711
CAD
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG13
θ I(mm)
9.2
Typology
Fitting with swivel male thread
Product code
PEU721013
CAD
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG16
θ I(mm)
11.8
Typology
Fitting with swivel male thread
Product code
PEU721216
CAD
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG21
θ I(mm)
16.1
Typology
Fitting with swivel male thread
Product code
PEU721721
CAD
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG29
θ I(mm)
22
Typology
Fitting with swivel male thread
Product code
PEU722329
CAD
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG36
θ I(mm)
28.3
Typology
Fitting with swivel male thread
Product code
PEU722936
CAD
NW(mm)
36
Thread(F)
PG (DIN 40430)
Size(F)
PG42
θ I(mm)
35.8
Typology
Fitting with swivel male thread
Product code
PEU723642
CAD
NW(mm)
48
Thread(F)
PG (DIN 40430)
Size(F)
PG48
θ I(mm)
46.7
Typology
Fitting with swivel male thread
Product code
PEU724848
CAD
NW(mm)
7
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ I(mm)
6
Typology
Fitting with swivel male thread
Product code
PEU730716
CAD
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ I(mm)
9.2
Typology
Fitting with swivel male thread
Product code
PEU731016
CAD
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ I(mm)
11.8
Typology
Fitting with swivel male thread
Product code
PEU731220
CAD
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ I(mm)
16.1
Typology
Fitting with swivel male thread
Product code
PEU731725
CAD
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
θ I(mm)
22
Typology
Fitting with swivel male thread
Product code
PEU732332
CAD
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ I(mm)
28.3
Typology
Fitting with swivel male thread
Product code
PEU732940
CAD
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
θ I(mm)
35.8
Typology
Fitting with swivel male thread
Product code
PEU733650
CAD
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
θ I(mm)
46.7
Typology
Fitting with swivel male thread
Product code
PEU734863
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.
