Fittings for Conduits
Fitting type cable gland for HJT and overbraided corrugated conduit
Cable gland fitting with fixed or swivel male thread for overbraided nylon conduit. It is usable where there is a threaded hole, by screwing it directly, or a passing hole with a locknut on the opposite side. Manufactured in nickel-plated brass. It can be used where it is necessary to block a cable with a cable gland and to protect it contemporarily into an overbraided nylon conduit. The protection degree in compliance with EN IEC 61386 between the fi tting and the cable is IP68 and it is ensured by the thermosetting elastomer rubber tightened on the conduit and by the sealing bushing tightened on the nylon conduit. Finally, when the nut is tightened on the steel jacket, the whole fitting is fixed and it ensures a perfect mechanical resistance to traction, torsion and vibrations, as well as the electrical continuity.

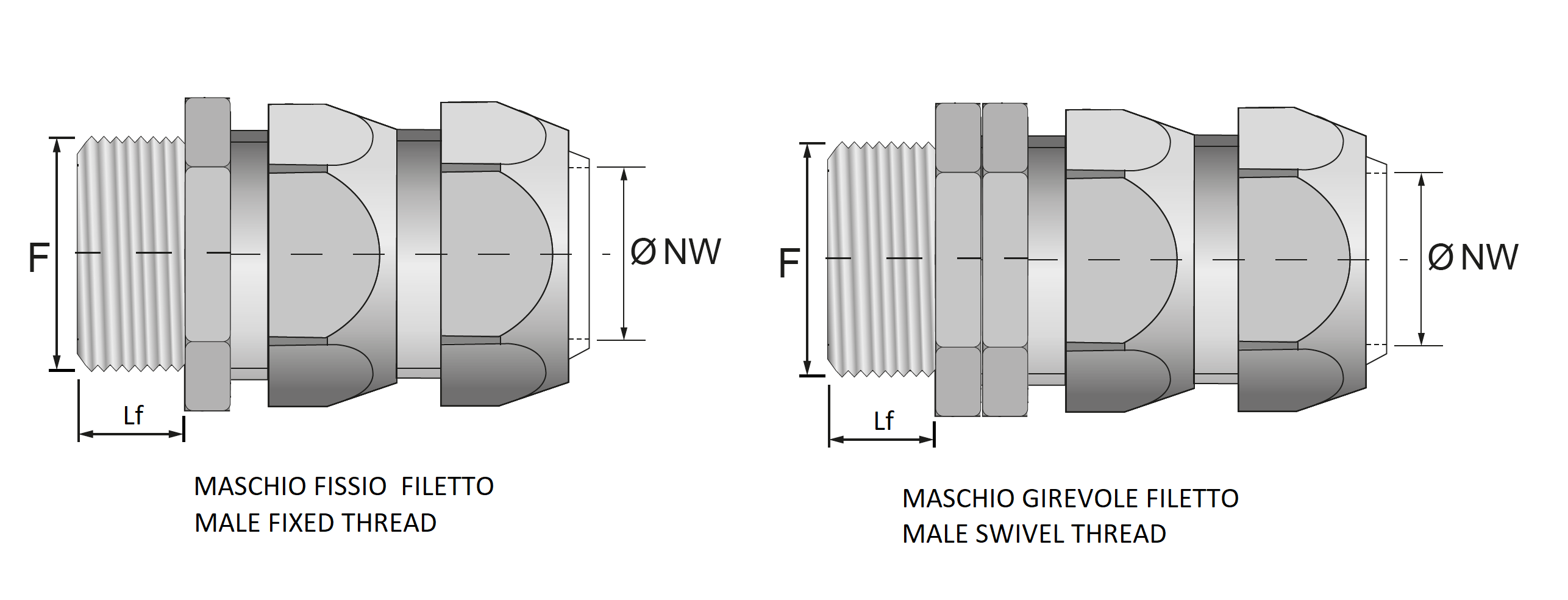

NW – Nominal diameter of the conduit
θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Types of threads: ISO Metric (ISO 965), PG (DIN 40430)
Material: Nickel plated brass
Color: Nickel
NW(mm)
7
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Typology
Fitting with fixed male thread
θ min(mm)
5
θ max(mm)
7
Product code
PEU760711
CAD
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
Typology
Fitting with fixed male thread
θ min(mm)
8
θ max(mm)
10
Product code
PEU761013
CAD
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Typology
Fitting with fixed male thread
θ min(mm)
7.5
θ max(mm)
12
Product code
PEU761216
CAD
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG21
Typology
Fitting with fixed male thread
θ min(mm)
12.5
θ max(mm)
17
Product code
PEU761721
CAD
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG29
Typology
Fitting with fixed male thread
θ min(mm)
17.5
θ max(mm)
23
Product code
PEU762329
CAD
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG36
Typology
Fitting with fixed male thread
θ min(mm)
27.5
θ max(mm)
29
Product code
PEU762936
CAD
NW(mm)
36
Thread(F)
PG (DIN 40430)
Size(F)
PG42
Typology
Fitting with fixed male thread
θ min(mm)
30.5
θ max(mm)
36
Product code
PEU763642
CAD
NW(mm)
48
Thread(F)
PG (DIN 40430)
Size(F)
PG48
Typology
Fitting with fixed male thread
θ min(mm)
43
θ max(mm)
48
Product code
PEU764848
CAD
NW(mm)
7
Thread(F)
Metrico (ISO 965)
Size(F)
M12x1,5
Typology
Fitting with fixed male thread
θ min(mm)
5
θ max(mm)
7
Product code
PEU770712
CAD
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Typology
Fitting with fixed male thread
θ min(mm)
8
θ max(mm)
10
Product code
PEU771016
CAD
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Typology
Fitting with fixed male thread
θ min(mm)
7.5
θ max(mm)
12
Product code
PEU771220
CAD
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Typology
Fitting with fixed male thread
θ min(mm)
12.5
θ max(mm)
17
Product code
PEU771725
CAD
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Typology
Fitting with fixed male thread
θ min(mm)
17.5
θ max(mm)
23
Product code
PEU772332
CAD
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Typology
Fitting with fixed male thread
θ min(mm)
27.5
θ max(mm)
29
Product code
PEU772940
CAD
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Typology
Fitting with fixed male thread
θ min(mm)
30.5
θ max(mm)
36
Product code
PEU773650
CAD
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
Typology
Fitting with fixed male thread
θ min(mm)
43
θ max(mm)
48
Product code
PEU774863
CAD
NW(mm)
7
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Typology
Fitting with swivel male thread
θ min(mm)
5
θ max(mm)
7
Product code
PEU780711
CAD
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
Typology
Fitting with swivel male thread
θ min(mm)
8
θ max(mm)
10
Product code
PEU781013
CAD
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Typology
Fitting with swivel male thread
θ min(mm)
7.5
θ max(mm)
12
Product code
PEU781216
CAD
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG21
Typology
Fitting with swivel male thread
θ min(mm)
12.5
θ max(mm)
17
Product code
PEU781721
CAD
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG29
Typology
Fitting with swivel male thread
θ min(mm)
17.5
θ max(mm)
23
Product code
PEU782329
CAD
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG36
Typology
Fitting with swivel male thread
θ min(mm)
27.5
θ max(mm)
29
Product code
PEU782936
CAD
NW(mm)
36
Thread(F)
PG (DIN 40430)
Size(F)
PG42
Typology
Fitting with swivel male thread
θ min(mm)
30.5
θ max(mm)
36
Product code
PEU783642
CAD
NW(mm)
48
Thread(F)
PG (DIN 40430)
Size(F)
PG48
Typology
Fitting with swivel male thread
θ min(mm)
43
θ max(mm)
48
Product code
PEU784848
CAD
NW(mm)
7
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Typology
Fitting with swivel male thread
θ min(mm)
5
θ max(mm)
7
Product code
PEU790716
CAD
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Typology
Fitting with swivel male thread
θ min(mm)
8
θ max(mm)
10
Product code
PEU791016
CAD
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Typology
Fitting with swivel male thread
θ min(mm)
7.5
θ max(mm)
12
Product code
PEU791220
CAD
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Typology
Fitting with swivel male thread
θ min(mm)
12.5
θ max(mm)
17
Product code
PEU791725
CAD
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Typology
Fitting with swivel male thread
θ min(mm)
17.5
θ max(mm)
23
Product code
PEU792332
CAD
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Typology
Fitting with swivel male thread
θ min(mm)
27.5
θ max(mm)
29
Product code
PEU792940
CAD
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Typology
Fitting with swivel male thread
θ min(mm)
30.5
θ max(mm)
36
Product code
PEU793650
CAD
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
Typology
Fitting with swivel male thread
θ min(mm)
43
θ max(mm)
48
Product code
PEU794863
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Traction test (cable anchoring for unarmoured cable - cable retention class B) and shore tests for the sealing rubber in accordance with EN / IEC 62444 on all closed systems consisting of cable glands.
