Strain-proof fitting type cable gland EMC - PA SPM
PA6 MOD BS male fitting cable gland strain relief (Earthing armoured) metal thread – corrugat conduit. The one-piece protection conduit fitting PA SPM with an integrated cable gland for additional strain relief of wires and conductors, with a short metric metal thread, is made of specially modified, halogen-free polyamide 6. The Material compound is self-extinguishing and resistant to most chemical media commonly used. The containing spring contacts at the cable passage enable proper electrical contact with screening braids above the cables. Due to its excellent UV resistance, PA SPM is also perfectly suited for outdoor installations. With the brand new 360° interlocking system and an inside conduit seal, PA SPM complies with the highest possible protection class IP69 in combination with our FIPLOCK corrugated conduits. Being delivered pre-assembled and easy to re-open by using a commercially available slotted screwdriver, PA SPM ensures significant time saving during installation and disassembly.

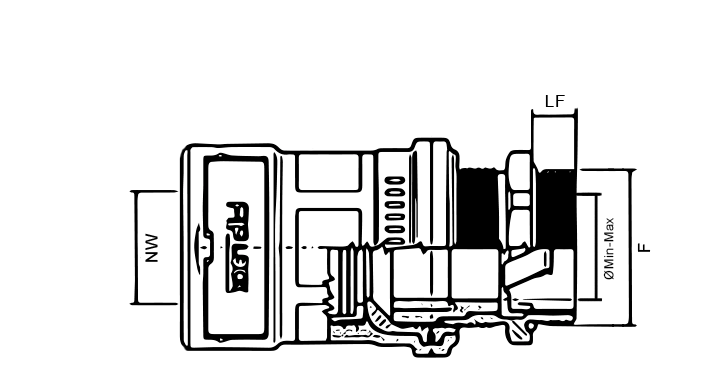

NW – Nominal diameter of the conduit
θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Types of threads: ISO Metric
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M12x1,5
Lf(mm)
6.5
θ min(mm)
3.5
θ max(mm)
7
Product code
P151012
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
7
θ min(mm)
4.5
θ max(mm)
10
Product code
P151016
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
7
θ min(mm)
4.5
θ max(mm)
10
Product code
P151216
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
8.5
θ min(mm)
7
θ max(mm)
13
Product code
P151220
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
8.5
θ min(mm)
7
θ max(mm)
13
Product code
P151720
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
8
θ min(mm)
9
θ max(mm)
17
Product code
P151725
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
8
θ min(mm)
9
θ max(mm)
17
Product code
P152325
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
9
θ min(mm)
11
θ max(mm)
21
Product code
P152332
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
9
θ min(mm)
11
θ max(mm)
21
Product code
P152932
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
9
θ min(mm)
19
θ max(mm)
28
Product code
P152940
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
9
θ min(mm)
19
θ max(mm)
28
Product code
P153640
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
10
θ min(mm)
27
θ max(mm)
35
Product code
P153650
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
10
θ min(mm)
27
θ max(mm)
35
Product code
P154850
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)
