Fittings for Conduits
Strain-proof fitting type cable gland PA PM
PA6 MOD BS Fitting cable gland with metal male thread for corrugated conduit IP66/IP67/IP68/IP69. The one-piece cable protection conduit fitting with an integrated cable gland for additional strain relief of wires and conductors, with a nickel-plated brass thread, is made of specially modified, free-halogen polyamide 6 is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV resistance, it is also perfectly suited for outdoor installations. With the brand new 360° interlocking system and an inside conduit seal, it complies with the highest possible protection class IP69 in combination with our corrugated conduits. Being delivered pre-assembled and easy to re-open by using a commercially available slotted screwdriver, ensures significant time saving during installation and disassembly. Available in Metric (long and short), PG, and NPT versions.

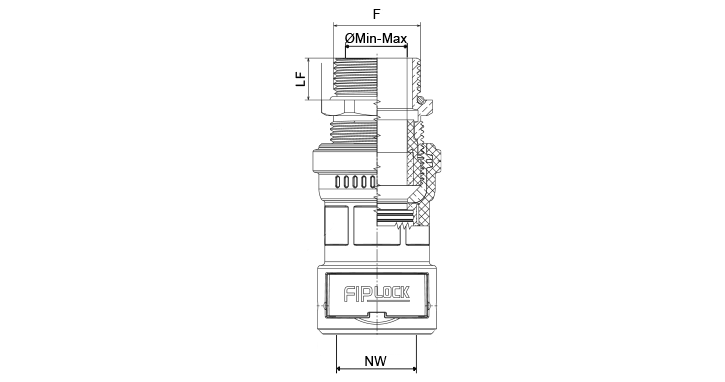

NW – Nominal diameter of the conduit
θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Types of threads: ISO Metric (ISO 965), PG (PG DIN 40430), NPT (ANSI/ASME B1.20.1)
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M12x1,5
Lf(mm)
12
θ min(mm)
3.5
θ max(mm)
7
Product code
P84312A
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M12x1,5
Lf(mm)
6.5
θ min(mm)
3.5
θ max(mm)
7
Product code
P84312B
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
12
θ min(mm)
4.5
θ max(mm)
10
Product code
P84316A
NW(mm)
10
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
7
θ min(mm)
4.5
θ max(mm)
10
Product code
P84316B
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
12
θ min(mm)
7
θ max(mm)
12.5
Product code
P84320A
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
8
θ min(mm)
7
θ max(mm)
12.5
Product code
P84320B
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
12
θ min(mm)
9
θ max(mm)
17
Product code
P84325A
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
8
θ min(mm)
9
θ max(mm)
17
Product code
P84325B
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
15
θ min(mm)
11
θ max(mm)
21
Product code
P84332A
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
9
θ min(mm)
11
θ max(mm)
21
Product code
P84332B
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
15
θ min(mm)
19
θ max(mm)
28
Product code
P84340A
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
9
θ min(mm)
19
θ max(mm)
28
Product code
P84340B
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
15
θ min(mm)
27
θ max(mm)
35
Product code
P84350A
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
9
θ min(mm)
27
θ max(mm)
35
Product code
P84350B
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
Lf(mm)
15
θ min(mm)
34
θ max(mm)
45
Product code
P84363A
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
Lf(mm)
10
θ min(mm)
34
θ max(mm)
45
Product code
P84363B
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
12
θ min(mm)
4.5
θ max(mm)
10
Product code
P84416A
NW(mm)
12
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
7
θ min(mm)
4.5
θ max(mm)
10
Product code
P84416B
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
12
θ min(mm)
7
θ max(mm)
13
Product code
P84420A
NW(mm)
17
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
8
θ min(mm)
7
θ max(mm)
13
Product code
P84420B
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
12
θ min(mm)
9
θ max(mm)
17
Product code
P84425A
NW(mm)
23
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
8
θ min(mm)
9
θ max(mm)
17
Product code
P84425B
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
15
θ min(mm)
11
θ max(mm)
21
Product code
P84432A
NW(mm)
29
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
9
θ min(mm)
11
θ max(mm)
21
Product code
P84432B
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
15
θ min(mm)
19
θ max(mm)
28
Product code
P84440A
NW(mm)
36
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
9
θ min(mm)
19
θ max(mm)
28
Product code
P84440B
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
15
θ min(mm)
27
θ max(mm)
35
Product code
P84450A
NW(mm)
48
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
10
θ min(mm)
27
θ max(mm)
35
Product code
P84450B
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG9
Lf(mm)
6
θ min(mm)
4
θ max(mm)
8
Product code
P85309
NW(mm)
10
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Lf(mm)
6
θ min(mm)
4
θ max(mm)
10
Product code
P85311
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG13,5
Lf(mm)
6.5
θ min(mm)
5
θ max(mm)
12
Product code
P85313
NW(mm)
17
Thread(F)
PG (DIN 40430)
Size(F)
PG16
Lf(mm)
6.5
θ min(mm)
8
θ max(mm)
14
Product code
P85316
NW(mm)
23
Thread(F)
PG (DIN 40430)
Size(F)
PG21
Lf(mm)
7
θ min(mm)
11
θ max(mm)
18
Product code
P85321
NW(mm)
29
Thread(F)
PG (DIN 40430)
Size(F)
PG29
Lf(mm)
8
θ min(mm)
16
θ max(mm)
25
Product code
P85329
NW(mm)
36
Thread(F)
PG (DIN 40430)
Size(F)
PG36
Lf(mm)
15
θ min(mm)
19
θ max(mm)
32
Product code
P85336
NW(mm)
48
Thread(F)
PG (DIN 40430)
Size(F)
PG48
Lf(mm)
13
θ min(mm)
34
θ max(mm)
44
Product code
P85348
NW(mm)
12
Thread(F)
PG (DIN 40430)
Size(F)
PG11
Lf(mm)
6
θ min(mm)
4
θ max(mm)
10
Product code
P85411
NW(mm)
10
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1/4”
Lf(mm)
15
θ min(mm)
3.5
θ max(mm)
7
Product code
P86301
NW(mm)
10
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 3/8”
Lf(mm)
15
θ min(mm)
4.5
θ max(mm)
9
Product code
P86302
NW(mm)
12
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1/2”
Lf(mm)
15
θ min(mm)
7
θ max(mm)
12.5
Product code
P86303
NW(mm)
17
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 3/4”
Lf(mm)
15
θ min(mm)
9
θ max(mm)
16.5
Product code
P86304
NW(mm)
23
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1”
Lf(mm)
15
θ min(mm)
11
θ max(mm)
21
Product code
P86305
NW(mm)
29
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1” 1/4
Lf(mm)
17
θ min(mm)
19
θ max(mm)
28
Product code
P86306
NW(mm)
36
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1” 1/2
Lf(mm)
17
θ min(mm)
27
θ max(mm)
35
Product code
P86307
NW(mm)
48
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 2”
Lf(mm)
17
θ min(mm)
34
θ max(mm)
45
Product code
P86308
NW(mm)
12
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 3/8”
Lf(mm)
15
θ min(mm)
4.5
θ max(mm)
9
Product code
P86402
NW(mm)
17
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1/2”
Lf(mm)
15
θ min(mm)
7
θ max(mm)
12.5
Product code
P86403
NW(mm)
23
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 3/4”
Lf(mm)
15
θ min(mm)
9
θ max(mm)
16.5
Product code
P86404
NW(mm)
29
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1”
Lf(mm)
15
θ min(mm)
11
θ max(mm)
21
Product code
P86405
NW(mm)
36
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1” 1/4
Lf(mm)
17
θ min(mm)
19
θ max(mm)
28
Product code
P86406
NW(mm)
48
Thread(F)
NPT (ANSI/ASME B1.20.1)
Size(F)
NPT 1” 1/2
Lf(mm)
17
θ min(mm)
27
θ max(mm)
35
Product code
P86407
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)
Quality controls
Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.
