Quick coupling fitting type cable gland INR-TR PR
Quick coupling cable gland with fixed male thread for rigid pipe. Cable gland quick-coupling fitting male thread METRIC ISO 965 for rigid GALVANIZED tubes type TZR or STAINLESS STEEL TXR. They assure a IP68 rating between fitting and cable assured by thermosetting elastomer rubber that tightens on cable. Range of temperature -40°C and +105°C. Electrical continuity < 0,05 ohm/mt. All our NICKEL PLATED BRASS or STAINLESS STEEL (AISI316 L / AISI 304) are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a brass fittings are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a corrosion tests. Certified and periodically inspected by IMQ ( Italian Mark of Quality ).

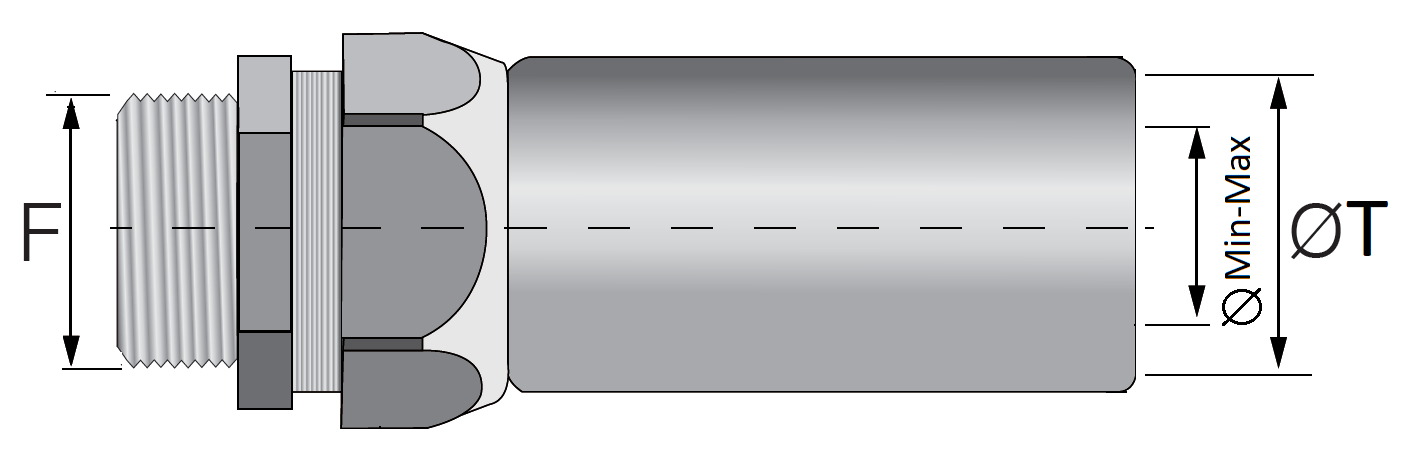

θ T- Pipe diameter
θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Material: Nickel plated brass
Color: Nickel
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ min(mm)
8
θ max(mm)
11.5
θ T(mm)
16
Product code
59142
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ min(mm)
7.5
θ max(mm)
13
θ T(mm)
20
Product code
59143
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ min(mm)
12.5
θ max(mm)
18
θ T(mm)
25
Product code
59144
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
θ min(mm)
17.5
θ max(mm)
23
θ T(mm)
32
Product code
59145
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ min(mm)
27.5
θ max(mm)
33
θ T(mm)
40
Product code
59146
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
θ min(mm)
30.5
θ max(mm)
36
θ T(mm)
50
Product code
59147
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
θ min(mm)
7.5
θ max(mm)
13
θ T(mm)
20
Product code
59242
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ min(mm)
7.5
θ max(mm)
13
θ T(mm)
20
Product code
59243
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
θ min(mm)
12.5
θ max(mm)
16
θ T(mm)
25
Product code
59244
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
θ min(mm)
17.5
θ max(mm)
21
θ T(mm)
32
Product code
59245
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ min(mm)
17.5
θ max(mm)
23
θ T(mm)
32
Product code
59246
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
θ min(mm)
30.5
θ max(mm)
36
θ T(mm)
50
Product code
59247
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67/IP68
Material: Nickel plated brass
Color: Nickel
Reference standard: IEC / EN 62444, EN IEC 61386-1,21
Tensile strength IEC / EN 62444: Cable anchor for unarmoured cable – Cable retention class B
Tensile strength EN IEC 61386-1: 1000 N
Impact resistance IEC / EN 62444: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of rigid pipes and fittings and cable gland fittings and traction test (cable anchoring for unarmoured cable - cable retention class B) and shore tests for the sealing rubber in accordance with EN / IEC 62444 on all closed systems consisting of cable glands.
