Metal accessories for fittings and cable glands
Couplings
Coupling – GAS ISO 228, ISO metric 965. A great variety of accessories made of nickel-brass to exploit at maximum level our fittings and to solve the great deal of combinations that can occur during the daily work on installations.

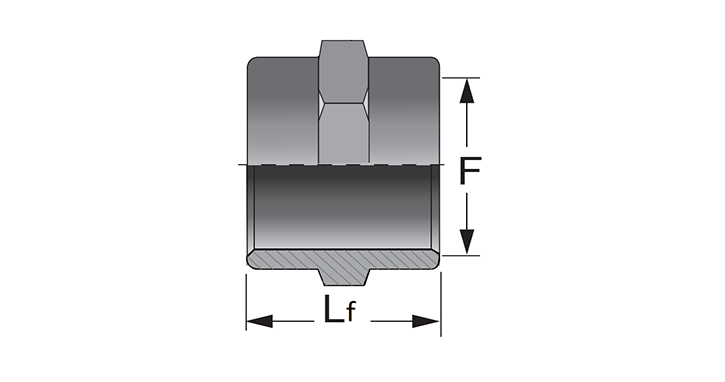

F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/4”
L(mm)
19
Product code
60401
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/8”
L(mm)
19
Product code
60402
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/2”
L(mm)
19
Product code
60403
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/4”
L(mm)
19
Product code
60404
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1”
L(mm)
19
Product code
60405
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1”1/4
L(mm)
35
Product code
60406
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1”1/2
L(mm)
35
Product code
60407
Material
Nickel plated brass
Thread(F)
GAS (ISO 228)
Size(F)
GAS 2”
L(mm)
35
Product code
60408
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
L(mm)
26
Product code
60443
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
L(mm)
28
Product code
60444
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
L(mm)
32
Product code
60445
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
L(mm)
32
Product code
60446
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
L(mm)
34
Product code
60447
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
L(mm)
34
Product code
60448
Material
Nickel plated brass
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
L(mm)
36
Product code
60449
Application sectors
Characteristics
Operating temperature: – 60 °C / + 200 °C
Material: Nickel plated brass
Color: Nickel
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Download the certifications
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
