Flexible corrugated conduit type PA6V2 SF SC

Flexible corrugated conduit IP66/IP67/IP68/IP69. The corrugated conduit PA6V2-SF-SC is manufactured in specially modified polyamide 6 PA6 MOD BS [V2] in compliance with the norms EN IEC 61386-2-3. Usable for demanding applications in machine building, installation, and construction industries, as well as in railway technology due to its excellent impact resistance, compression strength, and good flexibility. Excellent impact resistance, compression strength, and good flexibility qualify the product for various demanding applications in the cable protection sector. The material is self-extinguishing and free of halogen and cadmium. Usage temperature range: from –45°C to +120°C. Self-extinguishing and non-flame propagating in compliance with UL 1696, FMVSS 302, and EN IEC 61386, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

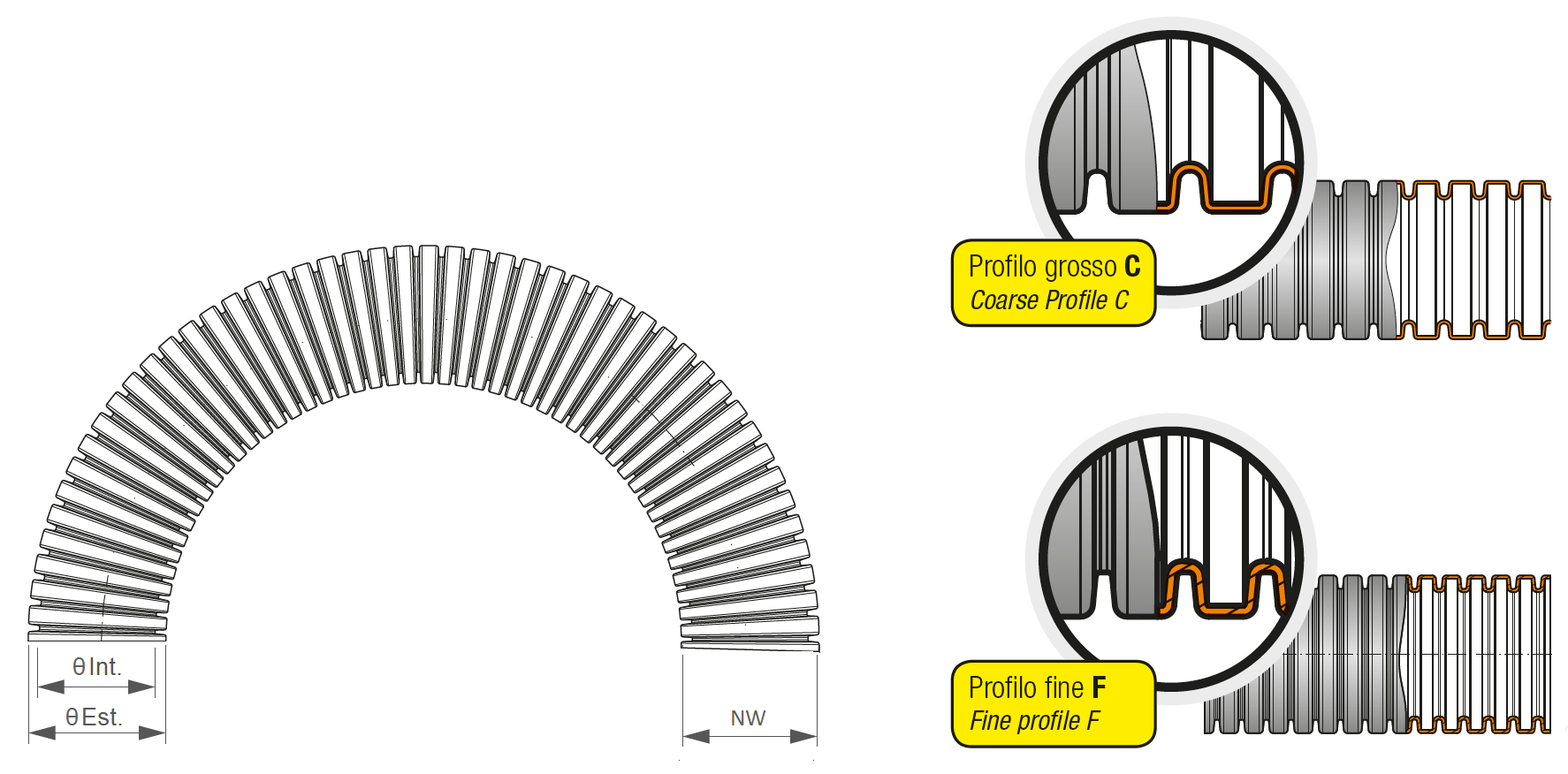

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 MOD BS C (PA6 MOD BS C)
Color: Black / Grey

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

16.1

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA6V2-SC-17B

θ int(mm)

16.1

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA6V2-SC-17G

θ int(mm)

22

θ est(mm)

28.5

Color

Black

NW(mm)

23

Product code

PA6V2-SC-23B

θ int(mm)

22

θ est(mm)

28.5

Color

Grey

NW(mm)

23

Product code

PA6V2-SC-23G

θ int(mm)

28.3

θ est(mm)

34.7

Color

Black

NW(mm)

29

Product code

PA6V2-SC-29B

θ int(mm)

28.3

θ est(mm)

34.7

Color

Grey

NW(mm)

29

Product code

PA6V2-SC-29G

θ int(mm)

36

θ est(mm)

42.3

Color

Black

NW(mm)

36

Product code

PA6V2-SC-36B

θ int(mm)

36

θ est(mm)

42.3

Color

Grey

NW(mm)

36

Product code

PA6V2-SC-36G

θ int(mm)

47

θ est(mm)

54.4

Color

Black

NW(mm)

48

Product code

PA6V2-SC-48B

θ int(mm)

47

θ est(mm)

54.4

Color

Grey

NW(mm)

48

Product code

PA6V2-SC-48G

θ int(mm)

56.3

θ est(mm)

67.2

Color

Black

NW(mm)

56

Product code

PA6V2-SC-56B*

θ int(mm)

56.3

θ est(mm)

67.2

Color

Grey

NW(mm)

56

Product code

PA6V2-SC-56G*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Black

NW(mm)

70

Product code

PA6V2-SC-70B*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Grey

NW(mm)

70

Product code

PA6V2-SC-70G*

θ int(mm)

91.3

θ est(mm)

106

Color

Black

NW(mm)

95

Product code

PA6V2-SC-95B*

θ int(mm)

91.3

θ est(mm)

106

Color

Grey

NW(mm)

95

Product code

PA6V2-SC-95G*

θ int(mm)

6.2

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PA6V2-SF-07B

θ int(mm)

6.2

θ est(mm)

10

Color

Grey

NW(mm)

7

Product code

PA6V2-SF-07G

θ int(mm)

9.6

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PA6V2-SF-10B

θ int(mm)

9.6

θ est(mm)

12.8

Color

Grey

NW(mm)

10

Product code

PA6V2-SF-10G

θ int(mm)

12

θ est(mm)

15.7

Color

Black

NW(mm)

12

Product code

PA6V2-SF-12B

θ int(mm)

12

θ est(mm)

15.7

Color

Grey

NW(mm)

12

Product code

PA6V2-SF-12G

θ int(mm)

16.6

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA6V2-SF-17B

θ int(mm)

16.6

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA6V2-SF-17G

θ int(mm)

22.6

θ est(mm)

28.4

Color

Black

NW(mm)

23

Product code

PA6V2-SF-23B

θ int(mm)

22.6

θ est(mm)

28.4

Color

Grey

NW(mm)

23

Product code

PA6V2-SF-23G

θ int(mm)

29

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PA6V2-SF-29B

θ int(mm)

29

θ est(mm)

34.5

Color

Grey

NW(mm)

29

Product code

PA6V2-SF-29G

θ int(mm)

36.5

θ est(mm)

42.4

Color

Black

NW(mm)

36

Product code

PA6V2-SF-36B

θ int(mm)

36.5

θ est(mm)

42.4

Color

Grey

NW(mm)

36

Product code

PA6V2-SF-36G

θ int(mm)

47.5

θ est(mm)

54.4

Color

Black

NW(mm)

48

Product code

PA6V2-SF-48B

θ int(mm)

47.5

θ est(mm)

54.4

Color

Grey

NW(mm)

48

Product code

PA6V2-SF-48G

Characteristics

Operating temperature: – 45 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD BS C (PA6 MOD BS C)
Color: Black / Grey
Reference standard: EN IEC 61386-23, UL 1696
Classification codes EN IEC 61386: 2 4 5 4
Compressive strength: 320 N
Impact resistance: 6 J
Impact resistance at -45°C: 2 J
Bending test EN IEC 61386: 5000 (-45°C / +120°C)
Tensile strength EN IEC 61386: 500 N
Halogen-Cadmium Free: Yes
Fire characteristic of the product UL 1696: Self-extinguishing
Fire classification UL94: V2 (V0)
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 850 °C
Fire hazardous level EN 45545-2: HL3 R22/R23
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kv/mq): 25,84 MJ/Kg (13540 BTU/lb)
Spread of fire EN IEC 61386: non flame propagating
Vertical burning behavior (EN ISO 6941:2003): Self-extinguishing
UV and weathering performance IS FIP: Average to good (5-10 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Certifications

American Society for Testing and Materials

Association of eletrical, electronic and infromation technologies

Halogen free

License for transport of hazardous goods

National Fire Protection Association

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

Standards for fire behavior of vechile interiors according to UNECE 118

Standards for rolling stock (halogen free) EN 45545-2
