Nylon and pvc conduits

Flexible corrugated conduit type PA6V2 CF CC

Flexible corrugated conduit IP66/IP67/IP68/IP69. The corrugated conduit PA6V2-CF-CC is manufactured in specially modified polyamide 6 PA6 MOD BS [V2] in compliance with the norms EN IEC 61386-2-3. Usable for mechanical engineering applications, shipbuilding, and cable protection solutions in the renewable energy industry due to its very good dynamic and mechanical at very low temperatures. The product displays excellent impact resistance, compression strength, and good flexibility. The material is self-extinguishing and free of halogen and cadmium. Usage temperature range: from –45°C to +105°C. Self-extinguishing and non-flame propagating in compliance with UL 1696 and EN IEC 61386, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

Download technical sheet

i

Request informations

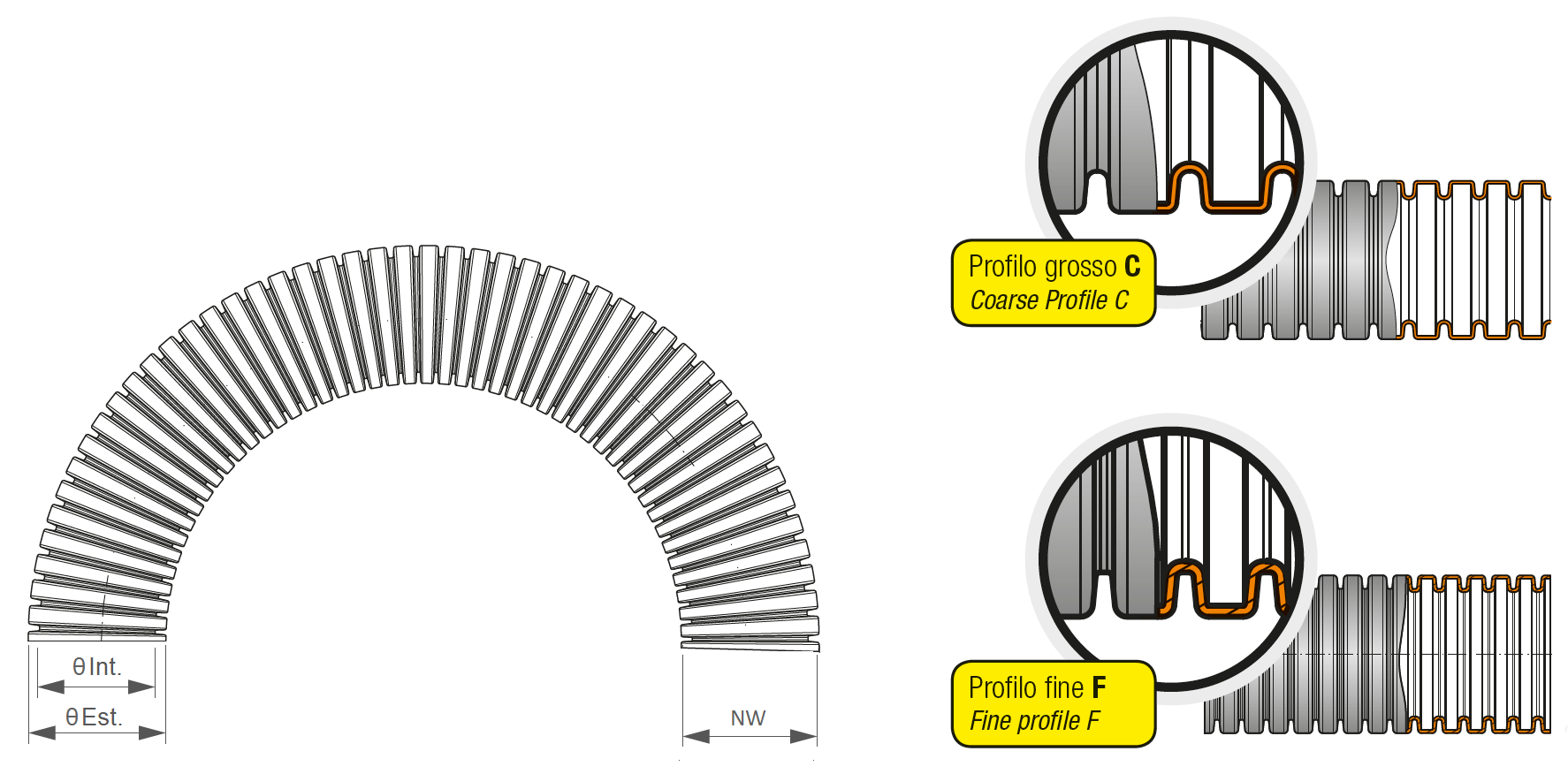

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 6 MOD BS C (PA6 MOD BS C)
Color: Black / Grey

θ int(mm)

16.1

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA6V2-CC-17B

θ int(mm)

16.1

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA6V2-CC-17G

θ int(mm)

22

θ est(mm)

28.5

Color

Black

NW(mm)

23

Product code

PA6V2-CC-23B

θ int(mm)

22

θ est(mm)

28.5

Color

Grey

NW(mm)

23

Product code

PA6V2-CC-23G

θ int(mm)

28.3

θ est(mm)

34.7

Color

Black

NW(mm)

29

Product code

PA6V2-CC-29B

θ int(mm)

28.3

θ est(mm)

34.7

Color

Grey

NW(mm)

29

Product code

PA6V2-CC-29G

θ int(mm)

35.8

θ est(mm)

42.3

Color

Black

NW(mm)

36

Product code

PA6V2-CC-36B

θ int(mm)

35.8

θ est(mm)

42.3

Color

Grey

NW(mm)

36

Product code

PA6V2-CC-36G

θ int(mm)

46.7

θ est(mm)

54.2

Color

Black

NW(mm)

48

Product code

PA6V2-CC-48B

θ int(mm)

46.7

θ est(mm)

54.2

Color

Grey

NW(mm)

48

Product code

PA6V2-CC-48G

θ int(mm)

56.3

θ est(mm)

67.2

Color

Black

NW(mm)

56

Product code

PA6V2-CC-56B*

θ int(mm)

56.3

θ est(mm)

67.2

Color

Grey

NW(mm)

56

Product code

PA6V2-CC-56G*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Black

NW(mm)

70

Product code

PA6V2-CC-70B*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Grey

NW(mm)

70

Product code

PA6V2-CC-70G*

θ int(mm)

91.3

θ est(mm)

106

Color

Black

NW(mm)

95

Product code

PA6V2-CC-95B*

θ int(mm)

91.3

θ est(mm)

106

Color

Grey

NW(mm)

95

Product code

PA6V2-CC-95G*

θ int(mm)

6.2

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PA6V2-CF-07B

θ int(mm)

6.2

θ est(mm)

10

Color

Grey

NW(mm)

7

Product code

PA6V2-CF-07G

θ int(mm)

9.6

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PA6V2-CF-10B

θ int(mm)

9.6

θ est(mm)

12.8

Color

Grey

NW(mm)

10

Product code

PA6V2-CF-10G

θ int(mm)

12

θ est(mm)

15.7

Color

Black

NW(mm)

12

Product code

PA6V2-CF-12B

θ int(mm)

12

θ est(mm)

15.7

Color

Grey

NW(mm)

12

Product code

PA6V2-CF-12G

θ int(mm)

16.6

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA6V2-CF-17B

θ int(mm)

16.6

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA6V2-CF-17G

θ int(mm)

22.6

θ est(mm)

28.4

Color

Black

NW(mm)

23

Product code

PA6V2-CF-23B

θ int(mm)

22.6

θ est(mm)

28.4

Color

Grey

NW(mm)

23

Product code

PA6V2-CF-23G

θ int(mm)

29

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PA6V2-CF-29B

θ int(mm)

29

θ est(mm)

34.5

Color

Grey

NW(mm)

29

Product code

PA6V2-CF-29G

θ int(mm)

34

θ est(mm)

42.2

Color

Black

NW(mm)

36

Product code

PA6V2-CF-36B

θ int(mm)

34

θ est(mm)

42.2

Color

Grey

NW(mm)

36

Product code

PA6V2-CF-36G

θ int(mm)

45.6

θ est(mm)

53.8

Color

Black

NW(mm)

48

Product code

PA6V2-CF-48B

θ int(mm)

45.6

θ est(mm)

53.8

Color

Grey

NW(mm)

48

Product code

PA6V2-CF-48G

Application sectors

Industrial automation

E-mobility & Automotive

Characteristics

Operating temperature: – 50 °C / + 105 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD BS C (PA6 MOD BS C)
Color: Black / Grey
Reference standard: EN IEC 61386-23, UL 1696
Classification codes EN IEC 61386: 2 4 5 3
Compressive strength: 320 N
Impact resistance: 6 J
Impact resistance at -45°C: 2 J
Tensile strength EN IEC 61386: 500 N
Halogen-Cadmium Free: Yes
Fire characteristic of the product UL 1696: Self-extinguishing
Fire classification UL94: V2
Glow wire test IEC 60695: 850 °C
Spread of fire EN IEC 61386: non flame propagating
UV and weathering performance IS FIP: Average to good (5-10 anni)

Quality controls

Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.

Download the certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Resistenza alle radiazioni UV

Restriction of Hazardous Substances directive

UL 1696 Mechanical Protection Tubing (MPT) and Fittings - E178449
