Straight flange fitting PA CFS
Straight prot. fitting JUMBO for corrugated conduits (Dia 56,70,95,125 mm) IP66/67/68/69. The straight cable protection conduit flange PA CFS, is made of specially modified, halogen-free polyamide 6. The material is self-extinguishing and resistant against most chemical media commonly used. Due to its excellent UV-resistance, PA CFS is also perfectly suitable for outdoor installations. Thanks to the pre-installed seal for the corrugated conduit side and the flange surface in conjunction with the included locking clamps, the connection between the PA CFS conduit flange and our corrugated conduits, starting from nominal width 56, achieve the highest possible ingress protection class IP69. Easy and safe installation for outstanding connection strength when used with heavy cables and cable bundles.

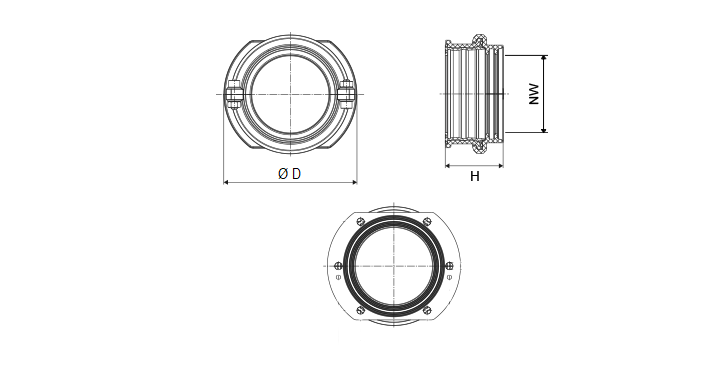

NW – Nominal diameter of the conduit
H – Height of the fitting
D – External diameter of the fitting
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Application sectors
Characteristics
Operating temperature: – 50 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 160°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Polyamide 6 MOD V0 SGA (PA6 MOD V0 SGA)
Color: Black / Grey
Reference standard: EN IEC 61386
Tensile strength: 500 N
Notched bar impact test ISO 180: 7-25 KJ/m2
Halogen-Cadmium Free: Yes
Fire classification UL94: V0
Fire characteristic of the product UL1696: Self-extinguishing
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 960 °C
Fire hazardous level EN 45545-2: HL3 R22, HL3 R23
Self-extinguishing EN IEC 61386: Flame retardant
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kw/m2): 19,4 MJ/Kg (8265 BTU/lb)
UV and weathering performance IS FIP: Excellent (40 anni)
