Flexible corrugated conduit type PA12V2 SF SC

Flexible corrugated conduit IP66/IP67/IP68/IP69. The corrugated conduit PA12V2-SF-SC is manufactured in specially modified polyamide 12 (PA12 MOD BS [V2] ) in compliance with the norms EN IEC 61386-2-3. Especially usable for automation and robotic applications. Furthermore, excellent UV / weather and chemical resistance accomplish these products for various applications and demanding requirements and installations. The conduit is halogen and cadmium free and reduces at minimum the toxicity levels. Furthermore, it is flame retarded and displays good resistance to UV rays, oils, and to solvents and displays also a high resistance to fatigue in applications characterized by the presence of continuous dynamic flexing movements. with a usage range between – 45°C to + 105°C in compliance with the norm EN IEC 61386. Resistant to high and low temperatures. Self-extinguishing and non-flame propagating in compliance with UL 1696, FMVSS 302, and EN IEC 61386, certificate equivalent standard: Meets with the requirements of BS EN 61386 – 2 – 3 and BS 731 Part 1.

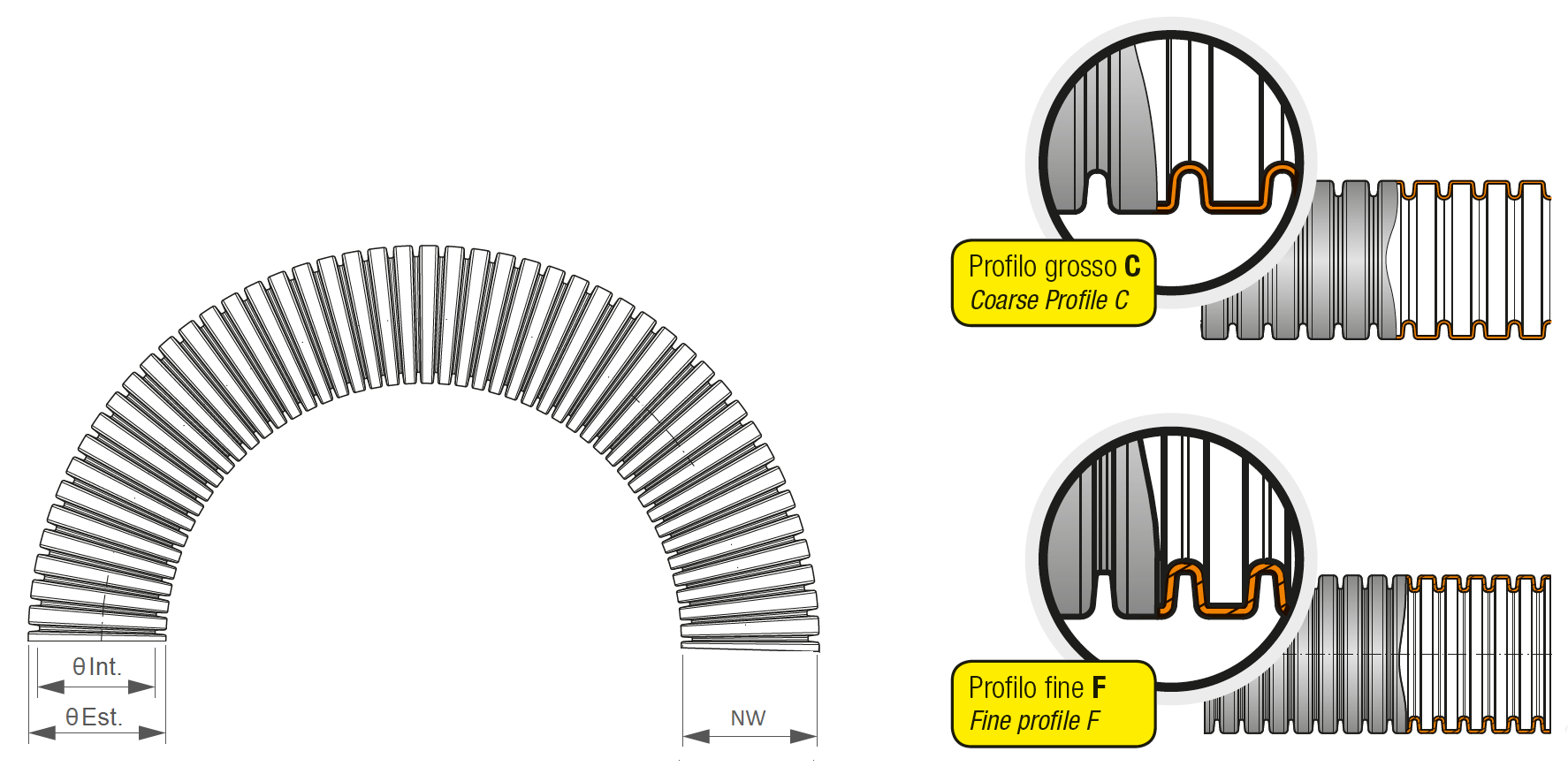

θ int.- Internal diameter of the conduit
θ est.- External diameter of the conduit
NW – Nominal diameter of the conduit
Material: Polyamide 12 MOD BS (PA12 MOD BS)
Color: Black / Grey

θ int(mm)

θ int(mm)

θ est(mm)

θ est(mm)

Color

Color

NW(mm)

NW(mm)

Product code

θ int(mm)

126.5

θ est(mm)

146.5

Color

Black

NW(mm)

125

Product code

PA12V2-SC-125B*

θ int(mm)

126.5

θ est(mm)

146.5

Color

Grey

NW(mm)

125

Product code

PA12V2-SC-125G*

θ int(mm)

172

θ est(mm)

193

Color

Black

NW(mm)

170

Product code

PA12V2-SC-170B*

θ int(mm)

172

θ est(mm)

193

Color

Grey

NW(mm)

170

Product code

PA12V2-SC-170G*

θ int(mm)

16.1

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA12V2-SC-17B

θ int(mm)

16.1

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA12V2-SC-17G

θ int(mm)

22

θ est(mm)

28.5

Color

Black

NW(mm)

23

Product code

PA12V2-SC-23B

θ int(mm)

22

θ est(mm)

28.5

Color

Grey

NW(mm)

23

Product code

PA12V2-SC-23G

θ int(mm)

28.3

θ est(mm)

34.7

Color

Black

NW(mm)

29

Product code

PA12V2-SC-29B

θ int(mm)

28.3

θ est(mm)

34.7

Color

Grey

NW(mm)

29

Product code

PA12V2-SC-29G

θ int(mm)

36.6

θ est(mm)

42.3

Color

Black

NW(mm)

36

Product code

PA12V2-SC-36B

θ int(mm)

36.6

θ est(mm)

42.3

Color

Grey

NW(mm)

36

Product code

PA12V2-SC-36G

θ int(mm)

57

θ est(mm)

54.4

Color

Black

NW(mm)

48

Product code

PA12V2-SC-48B

θ int(mm)

57

θ est(mm)

54.4

Color

Grey

NW(mm)

48

Product code

PA12V2-SC-48G

θ int(mm)

56.3

θ est(mm)

67.2

Color

Black

NW(mm)

56

Product code

PA12V2-SC-56B*

θ int(mm)

56.3

θ est(mm)

67.2

Color

Grey

NW(mm)

56

Product code

PA12V2-SC-56G*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Black

NW(mm)

70

Product code

PA12V2-SC-70B*

θ int(mm)

67.2

θ est(mm)

79.6

Color

Grey

NW(mm)

70

Product code

PA12V2-SC-70G*

θ int(mm)

91.3

θ est(mm)

106

Color

Black

NW(mm)

95

Product code

PA12V2-SC-95B*

θ int(mm)

91.3

θ est(mm)

106

Color

Grey

NW(mm)

95

Product code

PA12V2-SC-95G*

θ int(mm)

6.2

θ est(mm)

10

Color

Black

NW(mm)

7

Product code

PA12V2-SF-07B

θ int(mm)

6.2

θ est(mm)

10

Color

Grey

NW(mm)

7

Product code

PA12V2-SF-07G

θ int(mm)

9.6

θ est(mm)

12.8

Color

Black

NW(mm)

10

Product code

PA12V2-SF-10B

θ int(mm)

9.6

θ est(mm)

12.8

Color

Grey

NW(mm)

10

Product code

PA12V2-SF-10G

θ int(mm)

12

θ est(mm)

15.7

Color

Black

NW(mm)

12

Product code

PA12V2-SF-12B

θ int(mm)

12

θ est(mm)

15.7

Color

Grey

NW(mm)

12

Product code

PA12V2-SF-12G

θ int(mm)

16.6

θ est(mm)

21.1

Color

Black

NW(mm)

17

Product code

PA12V2-SF-17B

θ int(mm)

16.6

θ est(mm)

21.1

Color

Grey

NW(mm)

17

Product code

PA12V2-SF-17G

θ int(mm)

22.6

θ est(mm)

28.4

Color

Black

NW(mm)

23

Product code

PA12V2-SF-23B

θ int(mm)

22.6

θ est(mm)

28.4

Color

Grey

NW(mm)

23

Product code

PA12V2-SF-23G

θ int(mm)

29

θ est(mm)

34.5

Color

Black

NW(mm)

29

Product code

PA12V2-SF-29B

θ int(mm)

29

θ est(mm)

34.5

Color

Grey

NW(mm)

29

Product code

PA12V2-SF-29G

θ int(mm)

34

θ est(mm)

42.4

Color

Black

NW(mm)

36

Product code

PA12V2-SF-36B

θ int(mm)

34

θ est(mm)

42.4

Color

Grey

NW(mm)

36

Product code

PA12V2-SF-36G

θ int(mm)

47.5

θ est(mm)

54.4

Color

Black

NW(mm)

48

Product code

PA12V2-SF-48B

θ int(mm)

47.5

θ est(mm)

54.4

Color

Grey

NW(mm)

48

Product code

PA12V2-SF-48G

Characteristics

Operating temperature: – 45 °C / + 120 °C
Temperature (Short period) IS FIP: 150°C (500h), 165°C (100h)
Degree of protection IP: IP66/IP67/IP68/IP69
Material: Poliammide 12 MOD BS (PA12 MOD BS)
Color: Black / Grey
Reference standard: EN IEC 61386-23, UL 1696
Classification codes EN IEC 61386: 2 3 5 3
Compressive strength: 320 N
Impact resistance: 2 J
Impact resistance at -45°C: 1 J
Tensile strength EN IEC 61386: 250 N
Halogen-Cadmium Free: Yes
Fire characteristic of the product UL 1696: Self-extinguishing
Fire classification UL94: V2
Self-extinguishing FMVSS 302: Self-extinguishing
Oxygen index EN ISO 4589-2: >32%
Glow wire test IEC 60695: 850 °C
Fire hazardous level EN 45545-2: HL2 R22, HL3 R23
Spread of fire EN IEC 61386: non flame propagating
Glow wire test IEC 60695: 850 °C
Fire hazardous level EN 45545-2: HL3 R22/R23
Flame spread index ASTM E162 (NFPA 130): Compliant
Smoke densitiy ASTM E662 (NFPA 130): Compliant
Toxicity BSS 7239/SMP 800-C: Compliant
Heat release ASTM E1354 (50 Kv/mq): 20,9 MJ/Kg (13540 BTU/lb)
Spread of fire EN IEC 61386: non flame propagating
Vertical burning behavior (EN ISO 6941:2003): Self-extinguishing
UV and weathering performance IS FIP: Excellent (30 anni)
