Fittings for Conduits
Fitting for pipe-conduit NY
Fittings for connection between metal rigid pipes and nylon flexible conduits. Fittings for connection between metal rigid pipes and nylon flexible conduits. Manufactured in compliance with the norm EN IEC 61386-2-3 in Polyamide 6 and nickel-plated brass. They are self-extinguishing according to the norm UL 94 and they ensure an IP67 protection degree. All our NICKEL PLATED BRASS or STAINLESS STEEL (AISI316 L / AISI 304) are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and brass fittings are checked through a corrosion test with salt fog according to norms UNI ISO 9227 and a corrosion tests. Certified and periodically inspected by IMQ ( Italian Mark of Quality).

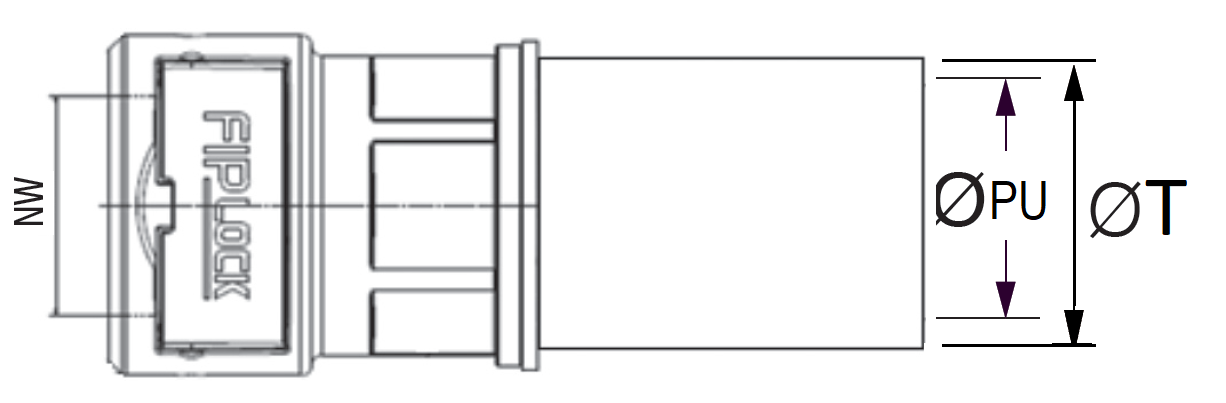

θ T- Pipe diameter
θ PU – Maximum cable passage
NW – Nominal diameter of the conduit
Material: Nickel plated brass and Polyamide 6 MOD V0 SGA
Material
Nickel plated brass + Polyamide 6
NW(mm)
10
θ PU(mm)
9.5
θ T(mm)
16
Product code
P99816
Material
Nickel plated brass + Polyamide 6
NW(mm)
12
θ PU(mm)
12
θ T(mm)
20
Product code
P99820
Material
Nickel plated brass + Polyamide 6
NW(mm)
17
θ PU(mm)
16
θ T(mm)
25
Product code
P99825
Material
Nickel plated brass + Polyamide 6
NW(mm)
23
θ PU(mm)
22
θ T(mm)
32
Product code
P99832
Material
Nickel plated brass + Polyamide 6
NW(mm)
29
θ PU(mm)
28.3
θ T(mm)
40
Product code
P99840
Material
Nickel plated brass + Polyamide 6
NW(mm)
36
θ PU(mm)
35.8
θ T(mm)
50
Product code
P99850
Material
Nickel plated brass + Polyamide 6
NW(mm)
48
θ PU(mm)
46.7
θ T(mm)
63
Product code
P99863*
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67
Material: Nickel plated brass and Polyamide 6 MOD V0 SGA
Reference standard: EN IEC 61386-1
Impact resistance EN IEC 61386: 6 J
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Traction test for the conduit system (conduit and fitting) and compression resistance tests in accordance with the EN IEC 61386 standard.
Download the certifications
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
