Cable gland type EUSTOP EMC
Shield cable glands with EMW, anti vibration and anti pulling IP68. Brass cable glands EUSTOP-EMW with neoprene gasket, isulating nylon o-ring on external thread, METRIC ISO 965 thread according european directives EN 50262. Watertight for all types of uses, these cables glands offer an easy assembling with an excellent resistant to traction and a wide range for ermetic clamping throught teeth that assure a uniform pressure around cable. Are used in electrical systems and installations, where can be source of disturbs electromagnetic or that can endure damaging to theirs components due to electromagnetic interferences from other sources. Type: swithboards for automation or distribution electric power, swithboards starter for electric motors, machines for working of the wood, glass, plastic, paper, metal. The protection class is IP68, temperature exercise range -40°C +100°C (permanent).

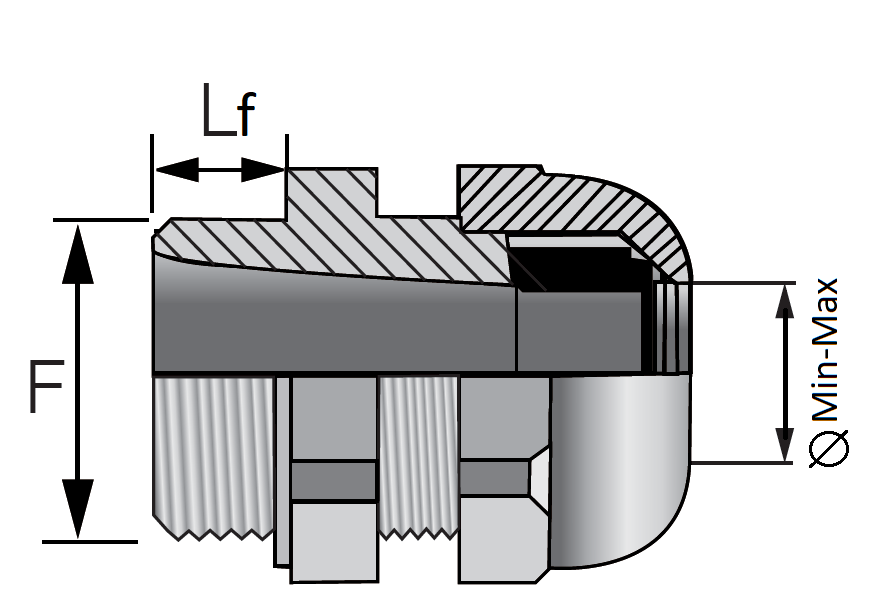

θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel
Thread(F)
Metrico (ISO 965)
Size(F)
M12x1,5
Lf(mm)
6
θ min(mm)
3
θ max(mm)
6.5
Product code
44711 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
7
θ min(mm)
4
θ max(mm)
8
Product code
44713 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
8
θ min(mm)
6
θ max(mm)
12
Product code
44715 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
8
θ min(mm)
10
θ max(mm)
14
Product code
44716 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
9
θ min(mm)
13
θ max(mm)
18
Product code
44717 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
9
θ min(mm)
18
θ max(mm)
25
Product code
44718 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
9
θ min(mm)
22
θ max(mm)
32
Product code
44719 EMW
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
Lf(mm)
14
θ min(mm)
34
θ max(mm)
44
Product code
44720 EMW
Application sectors
Characteristics
Operating temperature: – 40 °C / + 100 °C
Degree of protection IP: IP66/IP67/IP68 (5bar)
Material: Nickel plated brass
Color: Nickel
Reference standard: IEC / EN 62444, EN 50262
Tensile strength IEC / EN 62444: Cable anchor for unarmoured cable – Cable retention class B
Impact resistance IEC / EN 62444: 6 J
Electrical characteristics: Guarantee electrical continuity
Electromagnetic (EMC): Yes
Corrosion resistance: Excellent resistance
