Cable glands

Cable gland type AM PRM JOLLY

cable gland with swivel male thread (universal cable gland for GAS, PG, ISO metric thread). The “Jolly” cable glands is a REGISTERED INVENTION PATENT n°93A000893. It allows you to choose and mount with a simple click the thread you need. Once mounted, it has the same usage and characteristics of a normal swivel cable gland except that it offers a wider range of threads which dramatically reduce matching problems during the installation process and also the inconvenient and expensive use of reducers. Locknut and body made of nickel-plated brass, washer in galvanized steel (with zinc minimum thickness 2 mm) and rubber in thermosetting elastomer. The protection degree certified according to EN IEC 61386 between fitting and the conduit is IP66 / IP67 / IP68 and it ensures an excellent resistance to traction and to any movement in any context. Available in METRIC ISO 965, GAS ISO 228 and PG in compliance with DIN 40430 thread versions.

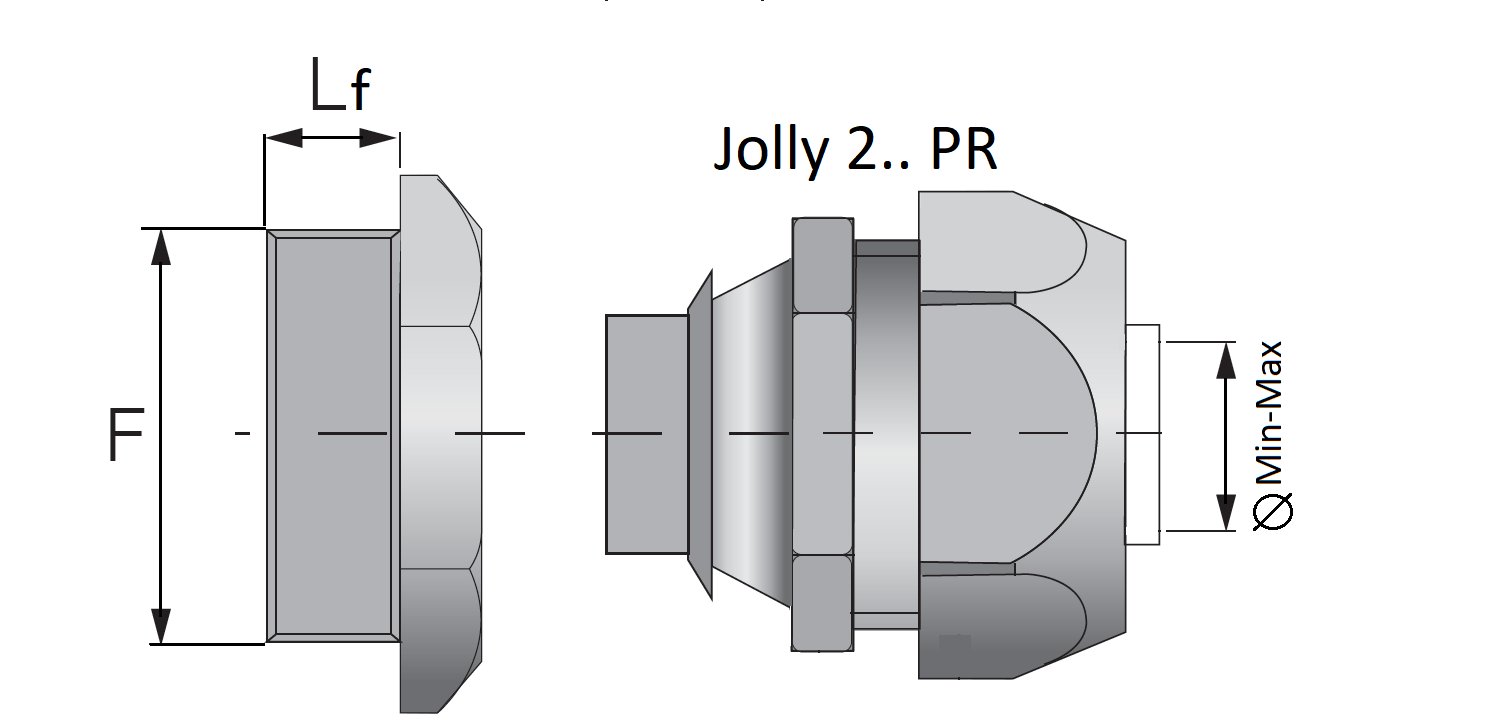

Jolly 2.. PR – JOLLY cable glands codes/ 283.. – Code Body
θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Types of threads: ISO Metric (ISO 965), GAS (ISO 228), PG (DIN 40430)
Material: Nickel plated brass
Color: Nickel

Select Thread(F)

Lf(mm)

Lf(mm)

θ min(mm)

θ min(mm)

θ max(mm)

θ max(mm)

Jolly code

Jolly

Product code

CAD

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28301

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28302

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28303

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28305

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28306

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28307

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28309

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28310

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28311

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28313

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28314

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28315

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28316

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28317

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28318

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28319

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28320

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28321

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

Lf(mm)

11

θ min(mm)

30.5

θ max(mm)

36

Jolly code

Jolly 240 PR

Product code

28322

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Lf(mm)

11

θ min(mm)

30.5

θ max(mm)

36

Jolly code

Jolly 240 PR

Product code

28323

CAD

CAD 3D

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Lf(mm)

11

θ min(mm)

43

θ max(mm)

49.5

Jolly code

Jolly 250 PR

Product code

28325

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG7

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28331

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28332

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28333

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28334

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28335

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28337

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28338

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28339

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28340

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28342

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28343

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28344

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28345

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28347

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28348

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28351

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28352

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28354

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG42

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28355

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG42

Lf(mm)

11

θ min(mm)

30.5

θ max(mm)

36

Jolly code

Jolly 240 PR

Product code

28357

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Lf(mm)

11

θ min(mm)

30.5

θ max(mm)

36

Jolly code

Jolly 240 PR

Product code

28358

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Lf(mm)

11

θ min(mm)

30.5

θ max(mm)

36

Jolly code

Jolly 240 PR

Product code

28359

CAD

CAD 3D

Thread(F)

PG (DIN 40430)

Size(F)

PG48

Lf(mm)

11

θ min(mm)

43

θ max(mm)

49.5

Jolly code

Jolly 250 PR

Product code

28361

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28370

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

5

θ max(mm)

8

Jolly code

Jolly 210 PR

Product code

28371

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 210 PR

Product code

28373

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28374

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

9

θ min(mm)

8

θ max(mm)

10.5

Jolly code

Jolly 212 PR

Product code

28375

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28376

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28377

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

9

θ min(mm)

7.5

θ max(mm)

13

Jolly code

Jolly 216 PR

Product code

28378

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28379

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28380

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

9

θ min(mm)

12.5

θ max(mm)

18

Jolly code

Jolly 221 PR

Product code

28381

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28382

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28383

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

11

θ min(mm)

17.5

θ max(mm)

23

Jolly code

Jolly 227 PR

Product code

28384

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28385

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

11

θ min(mm)

27.5

θ max(mm)

33

Jolly code

Jolly 235 PR

Product code

28386

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Lf(mm)

11

θ min(mm)

30.5

θ max(mm)

36

Jolly code

Jolly 240 PR

Product code

28388

CAD

CAD 3D

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Lf(mm)

11

θ min(mm)

43

θ max(mm)

49.5

Jolly code

Jolly 250 PR

Product code

28390

CAD

CAD 3D

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67/IP68
Material: Nickel plated brass
Color: Nickel
Reference standard: IEC / EN 62444
Tensile strength IEC / EN 62444: Cable anchor for unarmoured cable – Cable retention class B
Impact resistance IEC / EN 62444: 6 J
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Traction test (cable anchoring for unarmoured cable - cable retention class B) and shore tests for the sealing rubber in accordance with EN / IEC 62444 on all closed systems consisting of cable glands.

Certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Related products

It may also interest you

Read our articles.
