Cable glands
Cable gland type AM PRF
cable gland with fixed female thread IP66/IP67/IP68. Brass straight fixed thread cable gland with mechanical tightening, that assures an high resistance to traction and to every type of vibration in every type of uses. It is made of both body and nut in nickel plated brass, galvanized steel washer (zinc plated minimum 2nm) and thermosetting elastomer rubber that assaures an IP66 / IP67 / IP68 rating. Available in METRIC ISO 965, GAS ISO 228 and PG in compliance with DIN 40430.

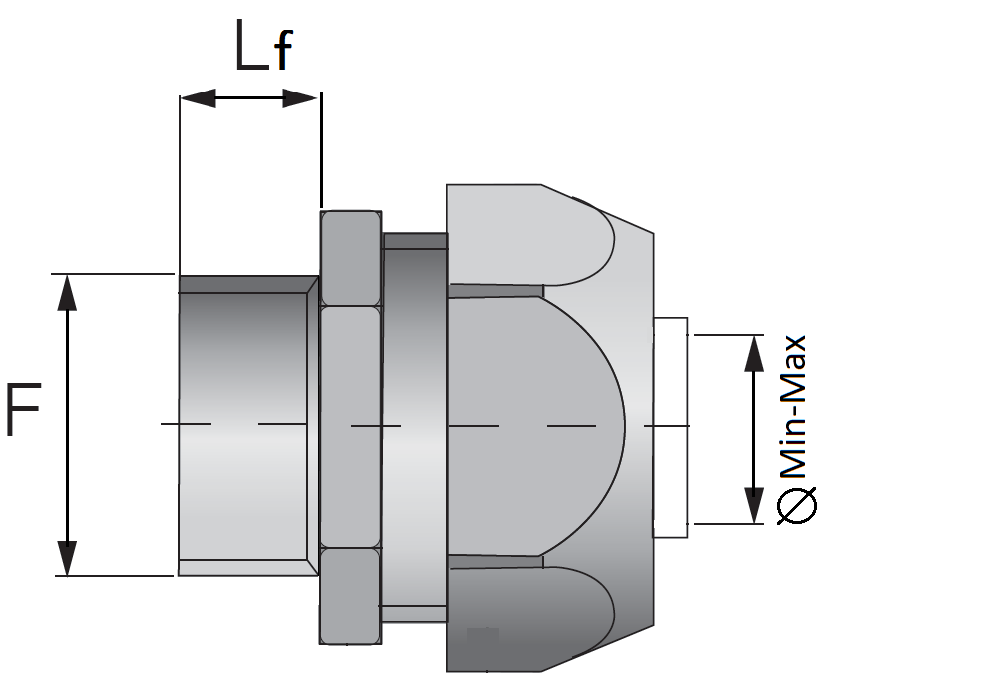

θ Min-Max – Cable passage range
F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/8”
Lf(mm)
10
θ min(mm)
8
θ max(mm)
11.5
Product code
51141
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/2”
Lf(mm)
10
θ min(mm)
7.5
θ max(mm)
13
Product code
51142
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 3/4”
Lf(mm)
10
θ min(mm)
12.5
θ max(mm)
18
Product code
51143
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1”
Lf(mm)
12
θ min(mm)
17.5
θ max(mm)
23
Product code
51144
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1” 1/4
Lf(mm)
12
θ min(mm)
27.5
θ max(mm)
30
Product code
51145
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1” 1/2
Lf(mm)
14
θ min(mm)
30.5
θ max(mm)
36
Product code
51146
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 2”
Lf(mm)
14
θ min(mm)
43
θ max(mm)
49.5
Product code
51147
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M16x1,5
Lf(mm)
10
θ min(mm)
8
θ max(mm)
11.5
Product code
51150
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M20x1,5
Lf(mm)
10
θ min(mm)
7.5
θ max(mm)
13
Product code
51151
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M25x1,5
Lf(mm)
10
θ min(mm)
12.5
θ max(mm)
18
Product code
51154
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M32x1,5
Lf(mm)
12
θ min(mm)
17.5
θ max(mm)
23
Product code
51156
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M40x1,5
Lf(mm)
12
θ min(mm)
27.5
θ max(mm)
30
Product code
51157
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M50x1,5
Lf(mm)
14
θ min(mm)
30.5
θ max(mm)
36
Product code
51158
CAD
Thread(F)
Metrico (ISO 965)
Size(F)
M63x1,5
Lf(mm)
14
θ min(mm)
43
θ max(mm)
49.5
Product code
51159
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 1/4”
Lf(mm)
10
θ min(mm)
5
θ max(mm)
8
Product code
51393
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 3/8”
Lf(mm)
10
θ min(mm)
8
θ max(mm)
11.5
Product code
51394
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 1/2”
Lf(mm)
13.75
θ min(mm)
7.5
θ max(mm)
13
Product code
51395
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 3/4”
Lf(mm)
13.75
θ min(mm)
12.5
θ max(mm)
18
Product code
51396
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 1”
Lf(mm)
17.6
θ min(mm)
17.5
θ max(mm)
23
Product code
51397
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 1” 1/4
Lf(mm)
17.6
θ min(mm)
27.5
θ max(mm)
30
Product code
51398
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 1” 1/2
Lf(mm)
18.5
θ min(mm)
30.5
θ max(mm)
36
Product code
51399
CAD
Thread(F)
GAS Conico (ISO 7-1)
Size(F)
R 2”
Lf(mm)
20.5
θ min(mm)
43
θ max(mm)
49.5
Product code
51400
CAD
Thread(F)
GAS (ISO 228)
Size(F)
GAS 1/4”
Lf(mm)
10
θ min(mm)
5
θ max(mm)
8
Product code
51440
CAD
Application sectors
Characteristics
Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP66/IP67/IP68
Material: Nickel plated brass
Color: Nickel
Reference standard: IEC / EN 62444
Tensile strength IEC / EN 62444: Cable anchor for unarmoured cable – Cable retention class B
Impact resistance IEC / EN 62444: 6 J
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Quality controls
Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Traction test (cable anchoring for unarmoured cable - cable retention class B) and shore tests for the sealing rubber in accordance with EN / IEC 62444 on all closed systems consisting of cable glands.
