Fittings for Conduits

Fitting type RCX MG

Swivel male straight fitting manufactured in self extinguishing PVC. These fittings are very easy to assemble and are suited for every fl exible PVC spiral conduit already present on the market. Protection class IP65.

Download technical sheet
i
Request informations

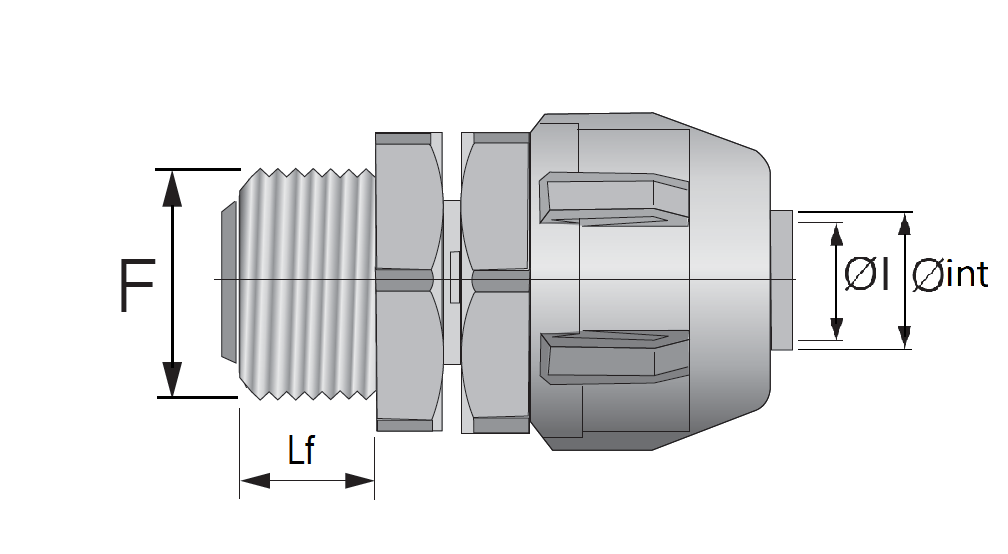

θ int.- Internal diameter of the conduit
F – Thread Type and Thread Size
Material: PVC
Color: Grey / Black

θ int(mm)

θ int(mm)
Apply Reset

Color

Color
Apply Reset

Select Thread(F)

Thread(F) Size(F)
Apply Reset
Apply Reset

Product code

θ int(mm)

8

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Product code

80000

Request info

θ int(mm)

8

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Product code

80000N

Request info

θ int(mm)

10

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Product code

80001

Request info

θ int(mm)

10

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/4”

Product code

80001N

Request info

θ int(mm)

12

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Product code

80002

Request info

θ int(mm)

12

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

Product code

80002N

Request info

θ int(mm)

14

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Product code

80003

Request info

θ int(mm)

14

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Product code

80003N

Request info

θ int(mm)

16

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Product code

80004

Request info

θ int(mm)

16

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

Product code

80004N

Request info

θ int(mm)

20

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Product code

80005

Request info

θ int(mm)

20

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Product code

80005N

Request info

θ int(mm)

22

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Product code

80006

Request info

θ int(mm)

22

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

Product code

80006N

Request info

θ int(mm)

25

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Product code

80007

Request info

θ int(mm)

25

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Product code

80007N

Request info

θ int(mm)

28

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Product code

80008

Request info

θ int(mm)

28

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

Product code

80008N

Request info

θ int(mm)

32

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Product code

80009

Request info

θ int(mm)

32

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Product code

80009N

Request info

θ int(mm)

35

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Product code

80010

Request info

θ int(mm)

35

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

Product code

80010N

Request info

θ int(mm)

40

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

Product code

80011

Request info

θ int(mm)

40

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

Product code

80011N

Request info

θ int(mm)

50

Color

Grey

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Product code

80012

Request info

θ int(mm)

50

Color

Black

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

Product code

80012N

Request info

θ int(mm)

10

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Product code

80031

Request info

θ int(mm)

10

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG9

Product code

80031N

Request info

θ int(mm)

12

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Product code

80032

Request info

θ int(mm)

12

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Product code

80032N

Request info

θ int(mm)

12

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

80033

Request info

θ int(mm)

12

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

80033N

Request info

θ int(mm)

14

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

80034

Request info

θ int(mm)

14

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

80034N

Request info

θ int(mm)

16

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Product code

80035

Request info

θ int(mm)

16

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG11

Product code

80035N

Request info

θ int(mm)

16

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

80036

Request info

θ int(mm)

16

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

Product code

80036N

Request info

θ int(mm)

16

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Product code

80037

Request info

θ int(mm)

16

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG16

Product code

80037N

Request info

θ int(mm)

20

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Product code

80038

Request info

θ int(mm)

20

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Product code

80038N

Request info

θ int(mm)

22

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Product code

80039

Request info

θ int(mm)

22

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG21

Product code

80039N

Request info

θ int(mm)

25

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

80040

Request info

θ int(mm)

25

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

80040N

Request info

θ int(mm)

28

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

80041

Request info

θ int(mm)

28

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG29

Product code

80041N

Request info

θ int(mm)

32

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Product code

80042

Request info

θ int(mm)

32

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Product code

80042N

Request info

θ int(mm)

35

Color

Grey

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Product code

80043

Request info

θ int(mm)

35

Color

Black

Thread(F)

PG (DIN 40430)

Size(F)

PG36

Product code

80043N

Request info

θ int(mm)

10

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

80060

Request info

θ int(mm)

10

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

80060N

Request info

θ int(mm)

12

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

80061

Request info

θ int(mm)

12

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

Product code

80061N

Request info

θ int(mm)

16

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Product code

80062

Request info

θ int(mm)

16

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

Product code

80062N

Request info

θ int(mm)

20

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Product code

80063

Request info

θ int(mm)

20

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

Product code

80063N

Request info

θ int(mm)

25

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Product code

80065

Request info

θ int(mm)

25

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

Product code

80065N

Request info

θ int(mm)

32

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Product code

80066

Request info

θ int(mm)

32

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

Product code

80066N

Request info

θ int(mm)

40

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Product code

80067

Request info

θ int(mm)

40

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

Product code

80067N

Request info

θ int(mm)

50

Color

Grey

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Product code

80068

Request info

θ int(mm)

50

Color

Black

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

Product code

80068N

Request info

Application sectors

Industrial automation

Industrial

Service sector

E-mobility & Automotive

Characteristics

Operating temperature: + 5 °C / + 70 °C
Degree of protection IP: IP65
Material: PVC
Color: Grey / Black
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 2 3 1 1
Compressive strength: 320 N
Impact resistance: 2 J
Self-extinguishing EN IEC 61386 e UL 94: Flame retardant

Download the certifications

CE compliance

Federal Executive Body (Russian Federation) - Gost-R POCC IT.HB56.H01066

Italian Naval Register - ELE063822CS

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive

Documentation download

Montaggio scatola di derivazione Junction box assembly.pdf
