Fittings for Conduits

Fitting type AM DMC HJT L

Fitting with male thread for flexible metal conduit with silicone elastomer sheath in fiberglass. Special fittings with fixed male thread for a double locking: the first one is a locking for standard metal recovered flexible conduits with reinforced clutch and the second one is a locking for covering conduit HJT made up by elastomer silicon fiberglass resistant to temperatures between -60°C and +260°C and until 800°C for 20 minutes. It can be used wherever there is a threaded hole, by screwing it directly or a passing hole by means of a locknut on the opposite side. They are made of nickel-plated brass and the IP protection between fitting and conduit, certified according to norm EN IEC 61386, is IP67 and it is assured by seal ring that tightens on the conduit when you tighten the nut, so that you can assure a perfect mechanical resistance to traction, to torsion and to vibration. Instead the electrical continuity is assured by an internal ferrule screwing on the internal metal structure of the conduit and covering the whole edge of the flexible conduit to protect cable passage.

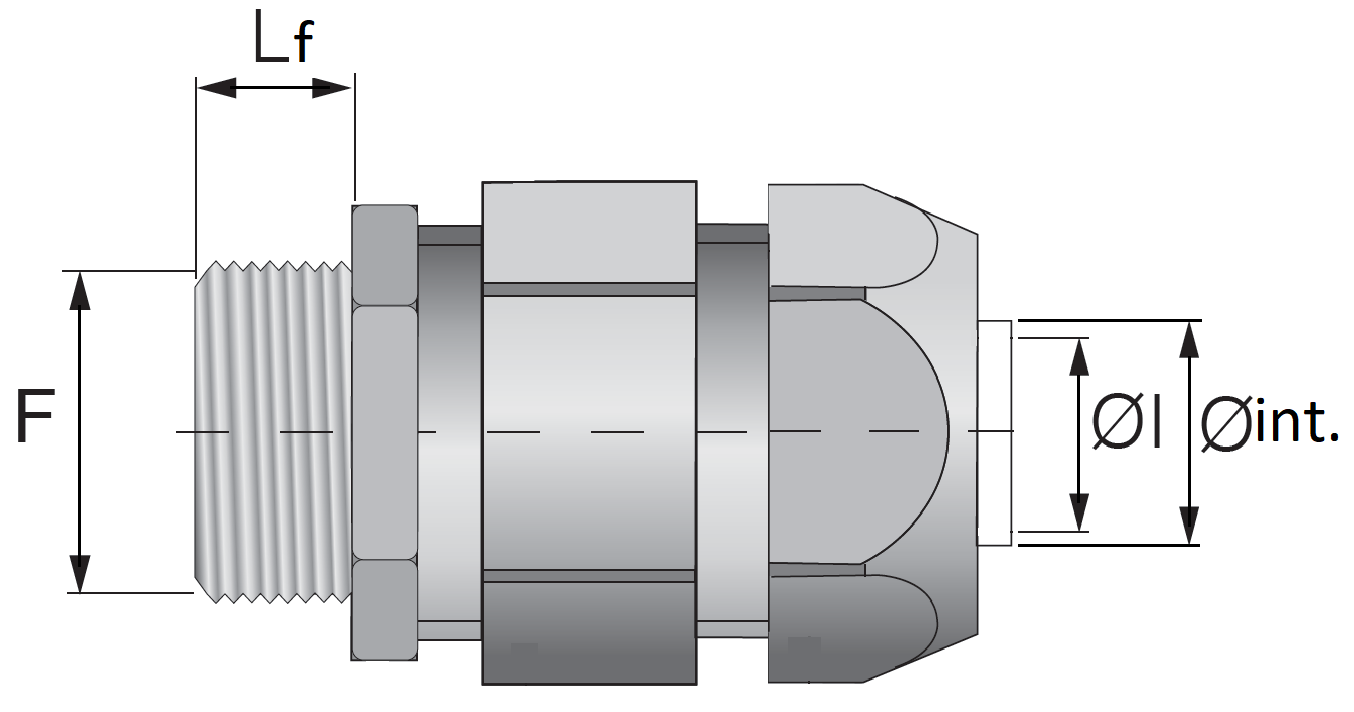

θ int.- Internal diameter of the conduit
θ I – Maximum cable passage
F – Thread Type and Thread Size
Lf – Thread length
Material: Nickel plated brass
Color: Nickel

θ int(mm)

θ int(mm)

Select Thread(F)

θ I(mm)

θ I(mm)

Lf(mm)

Lf(mm)

Product code

CAD

θ int(mm)

10

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/8”

θ I(mm)

8.5

Lf(mm)

9

Product code

51862

CAD

CAD 3D

θ int(mm)

12

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

θ I(mm)

10.5

Lf(mm)

9

Product code

51863

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1/2”

θ I(mm)

14

Lf(mm)

9

Product code

51864

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 3/4”

θ I(mm)

19

Lf(mm)

9

Product code

51865

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1”

θ I(mm)

24.5

Lf(mm)

11

Product code

51866

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/4

θ I(mm)

32.5

Lf(mm)

11

Product code

51867

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 1” 1/2

θ I(mm)

37.5

Lf(mm)

14

Product code

51868

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

GAS (ISO 228)

Size(F)

GAS 2”

θ I(mm)

48.5

Lf(mm)

14

Product code

51869

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

PG (DIN 40430)

Size(F)

PG11

θ I(mm)

14

Lf(mm)

9

Product code

51871

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

PG (DIN 40430)

Size(F)

PG16

θ I(mm)

19

Lf(mm)

9

Product code

51872

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

PG (DIN 40430)

Size(F)

PG21

θ I(mm)

24.5

Lf(mm)

11

Product code

51873

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

PG (DIN 40430)

Size(F)

PG29

θ I(mm)

32.5

Lf(mm)

11

Product code

51874

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

PG (DIN 40430)

Size(F)

PG36

θ I(mm)

37.5

Lf(mm)

14

Product code

51875

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

PG (DIN 40430)

Size(F)

PG42

θ I(mm)

48.5

Lf(mm)

14

Product code

51876

CAD

CAD 3D

θ int(mm)

10

Thread(F)

PG (DIN 40430)

Size(F)

PG11

θ I(mm)

8.5

Lf(mm)

9

Product code

51884

CAD

CAD 3D

θ int(mm)

12

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

θ I(mm)

10.5

Lf(mm)

9

Product code

51885

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

PG (DIN 40430)

Size(F)

PG13,5

θ I(mm)

14

Lf(mm)

9

Product code

51887

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

PG (DIN 40430)

Size(F)

PG16

θ I(mm)

14

Lf(mm)

9

Product code

51888

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

PG (DIN 40430)

Size(F)

PG21

θ I(mm)

19

Lf(mm)

9

Product code

51889

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

PG (DIN 40430)

Size(F)

PG29

θ I(mm)

24.5

Lf(mm)

11

Product code

51890

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

PG (DIN 40430)

Size(F)

PG36

θ I(mm)

32.5

Lf(mm)

11

Product code

51891

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

PG (DIN 40430)

Size(F)

PG42

θ I(mm)

37.5

Lf(mm)

14

Product code

51892

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

PG (DIN 40430)

Size(F)

PG48

θ I(mm)

48.5

Lf(mm)

14

Product code

51893

CAD

CAD 3D

θ int(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M12x1,5

θ I(mm)

8.5

Lf(mm)

9

Product code

51981

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

θ I(mm)

14

Lf(mm)

9

Product code

51982

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

θ I(mm)

14

Lf(mm)

9

Product code

51983

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

θ I(mm)

19

Lf(mm)

9

Product code

51984

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

θ I(mm)

24.5

Lf(mm)

11

Product code

51985

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

θ I(mm)

24.5

Lf(mm)

11

Product code

51986

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

θ I(mm)

37.5

Lf(mm)

14

Product code

51987

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

θ I(mm)

48.5

Lf(mm)

14

Product code

51988

CAD

CAD 3D

θ int(mm)

10

Thread(F)

Metrico (ISO 965)

Size(F)

M16x1,5

θ I(mm)

8.5

Lf(mm)

9

Product code

51991

CAD

CAD 3D

θ int(mm)

12

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

θ I(mm)

10.5

Lf(mm)

9

Product code

51992

CAD

CAD 3D

θ int(mm)

15.5

Thread(F)

Metrico (ISO 965)

Size(F)

M20x1,5

θ I(mm)

14

Lf(mm)

9

Product code

51993

CAD

CAD 3D

θ int(mm)

20.5

Thread(F)

Metrico (ISO 965)

Size(F)

M25x1,5

θ I(mm)

19

Lf(mm)

9

Product code

51994

CAD

CAD 3D

θ int(mm)

26.5

Thread(F)

Metrico (ISO 965)

Size(F)

M32x1,5

θ I(mm)

24.5

Lf(mm)

11

Product code

51995

CAD

CAD 3D

θ int(mm)

34.5

Thread(F)

Metrico (ISO 965)

Size(F)

M40x1,5

θ I(mm)

32.5

Lf(mm)

11

Product code

51996

CAD

CAD 3D

θ int(mm)

39.5

Thread(F)

Metrico (ISO 965)

Size(F)

M50x1,5

θ I(mm)

37.5

Lf(mm)

14

Product code

51997

CAD

CAD 3D

θ int(mm)

50.5

Thread(F)

Metrico (ISO 965)

Size(F)

M63x1,5

θ I(mm)

48.5

Lf(mm)

14

Product code

51998

CAD

CAD 3D

Characteristics

Operating temperature: – 40 °C / + 105 °C
Degree of protection IP: IP67
Material: Nickel plated brass
Color: Nickel
Reference standard: EN IEC 61386
Classification codes EN IEC 61386: 4 4 4 3
Tensile strength: 1000 N
Impact resistance: 6 J
Self-extinguishing EN IEC 61386: Flame retardant
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent

Quality controls

Salt Spray and Salt Fog Testing: UNI EN ISO 9227:2017 (NSS). Periodic tests on each production lot relating to traction at 1000 N and compression at 1250 N in accordance with the EN IEC 61386 standard on all closed systems consisting of conduits and fittings and cable gland fittings.

Download the certifications

Registration, Evaluation, Authorization and Restriction of Chemicals

Restriction of Hazardous Substances directive
