UNEF EU2 CAP

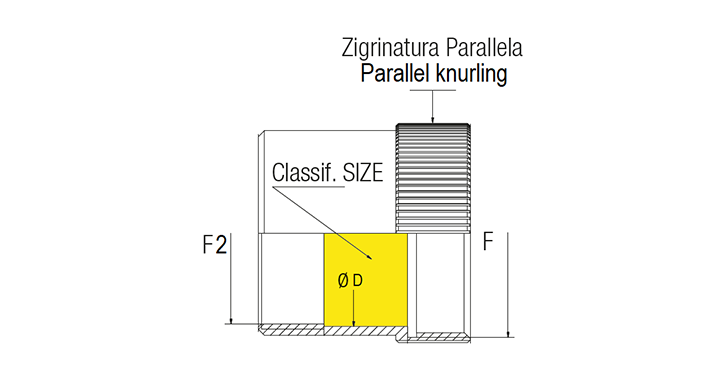

The new caps with UNEF thread that we want to present are designed with ISO METRIC R68 entry thread according to the norm EN IEC 60423, as foreseen by EU norm EN IEC 61386. Their dimensions satisfy the exigencies to house contacts of a circular connector. This housing is dimensioned according to SIZE classification, often not really considered. This classification helps determine the useful space, as highlighted in yellow into the figure beside ø SIZE for L SIZE. Often we reve requests for an entry thread too narrow for the great number of contacts to be installed and housed into it. This shows how important is being aware of SIZE classification.
F, F2 – Thread size
Class. SIZE
θ D – SIZE diameter
Material: Nickel plated brass
Color: Nickel
Thread(F)
UNEF
Size(F)
5/8” 24 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M12x1,5
D(mm)
14
Classification
SIZE 12
Product code
P81300
Thread(F)
UNEF
Size(F)
5/8” 24 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M16x1,5
D(mm)
14
Classification
SIZE 12
Product code
P81301
Thread(F)
UNEF
Size(F)
3/4” 20 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M16x1,5
D(mm)
16
Classification
SIZE 14
Product code
P81302
Thread(F)
UNEF
Size(F)
7/8” 20 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M20x1,5
D(mm)
19.5
Classification
SIZE 16
Product code
P81303
Thread(F)
UNEF
Size(F)
1” 20 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M16x1,5
D(mm)
22
Classification
SIZE 18
Product code
P81304
Thread(F)
UNEF
Size(F)
1” 20 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M20x1,5
D(mm)
22
Classification
SIZE 18
Product code
P81305
Thread(F)
UNEF
Size(F)
1” 20 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M25x1,5
D(mm)
22
Classification
SIZE 18
Product code
P81306
Thread(F)
UNEF
Size(F)
1” 3/16 18 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M20x1,5
D(mm)
27.5
Classification
SIZE 22
Product code
P81307
Thread(F)
UNEF
Size(F)
1” 3/16 18 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M25x1,5
D(mm)
27.5
Classification
SIZE 22
Product code
P81308
Thread(F)
UNEF
Size(F)
1” 3/8 18 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M20x1,5
D(mm)
31.5
Classification
SIZE 24
Product code
P81309
Thread(F)
UNEF
Size(F)
1” 3/8 18 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M32x1,5
D(mm)
31.5
Classification
SIZE 24
Product code
P81310
Thread(F)
UNEF
Size(F)
1” 7/16 18 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M32x1,5
D(mm)
37
Classification
SIZE 28
Product code
P81311
Thread(F)
UNEF
Size(F)
1” 3/4 18 UNEF
Thread(F2)
Metrico (ISO 965)
Size(F2)
M40x1,5
D(mm)
43
Classification
SIZE 32
Product code
P81312
Thread(F)
UN
Size(F)
2” 18 UN
Thread(F2)
Metrico (ISO 965)
Size(F2)
M40x1,5
D(mm)
48
Classification
SIZE 36
Product code
P81313
Thread(F)
UN
Size(F)
2” 1/16 16 UN
Thread(F2)
Metrico (ISO 965)
Size(F2)
M50x1,5
D(mm)
54
Classification
SIZE 40
Product code
P81314
Thread(F)
UN
Size(F)
2” 5/16 16 UN
Thread(F2)
Metrico (ISO 965)
Size(F2)
M50x1,5
D(mm)
54
Classification
SIZE 40
Product code
P81315
Application sectors
Characteristics
Operating temperature: – 60 °C / + 200 °C
Degree of protection IP: IP66
Material: Nickel plated brass
Color: Nickel
Electrical characteristics: Guarantee electrical continuity
Corrosion resistance: Excellent
Download the certifications
Registration, Evaluation, Authorization and Restriction of Chemicals
Restriction of Hazardous Substances directive
